Canon imagePROGRAF iPF6300S

To Next Page

To Previous Page

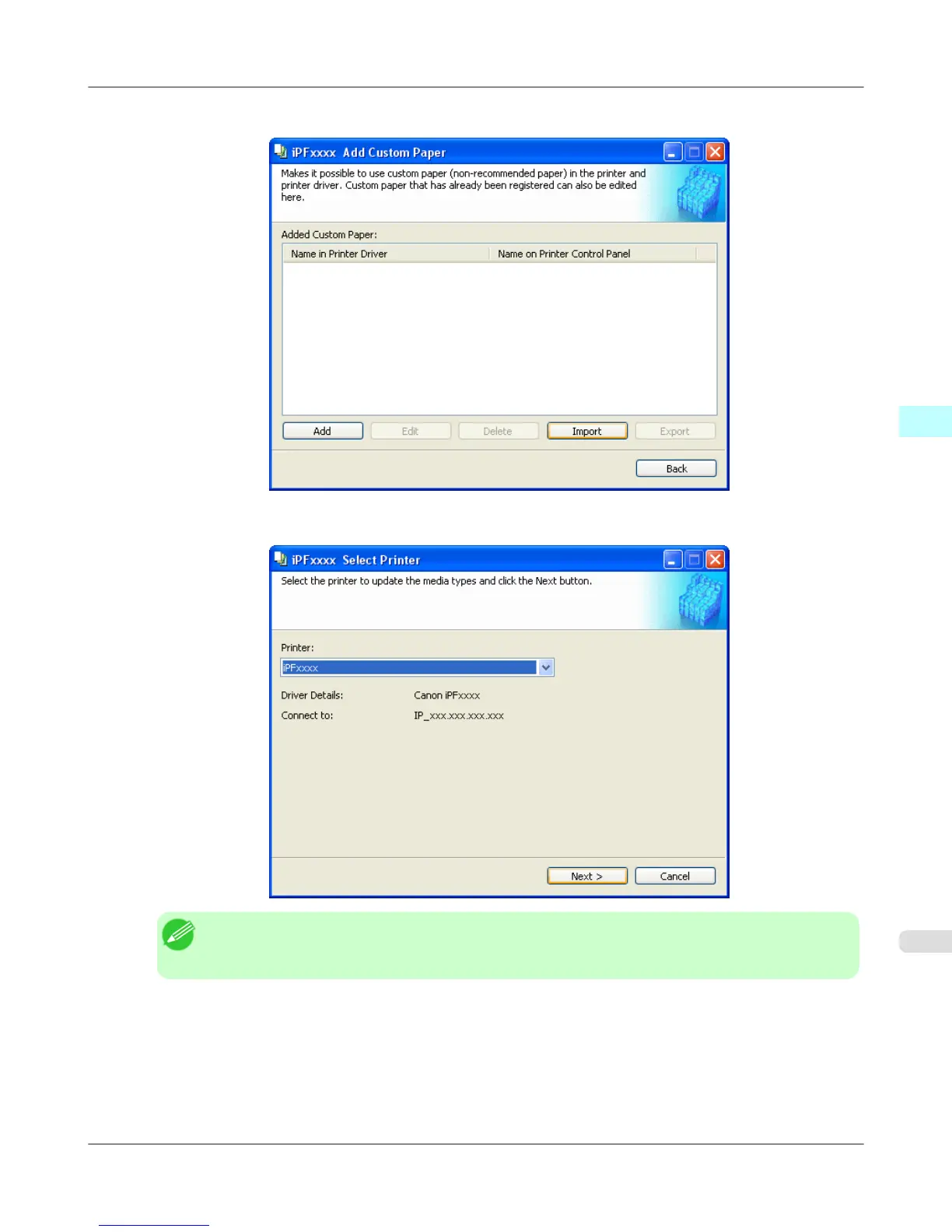

2. Click the Import button.

3. Select the printer to add the custom paper to.

Note

• Double-click Custom Media Information File to start the Media Configuration Tool and display this

screen.

Windows Software

Media Configuration Tool

iPF6300S Import Custom Media Information

481
