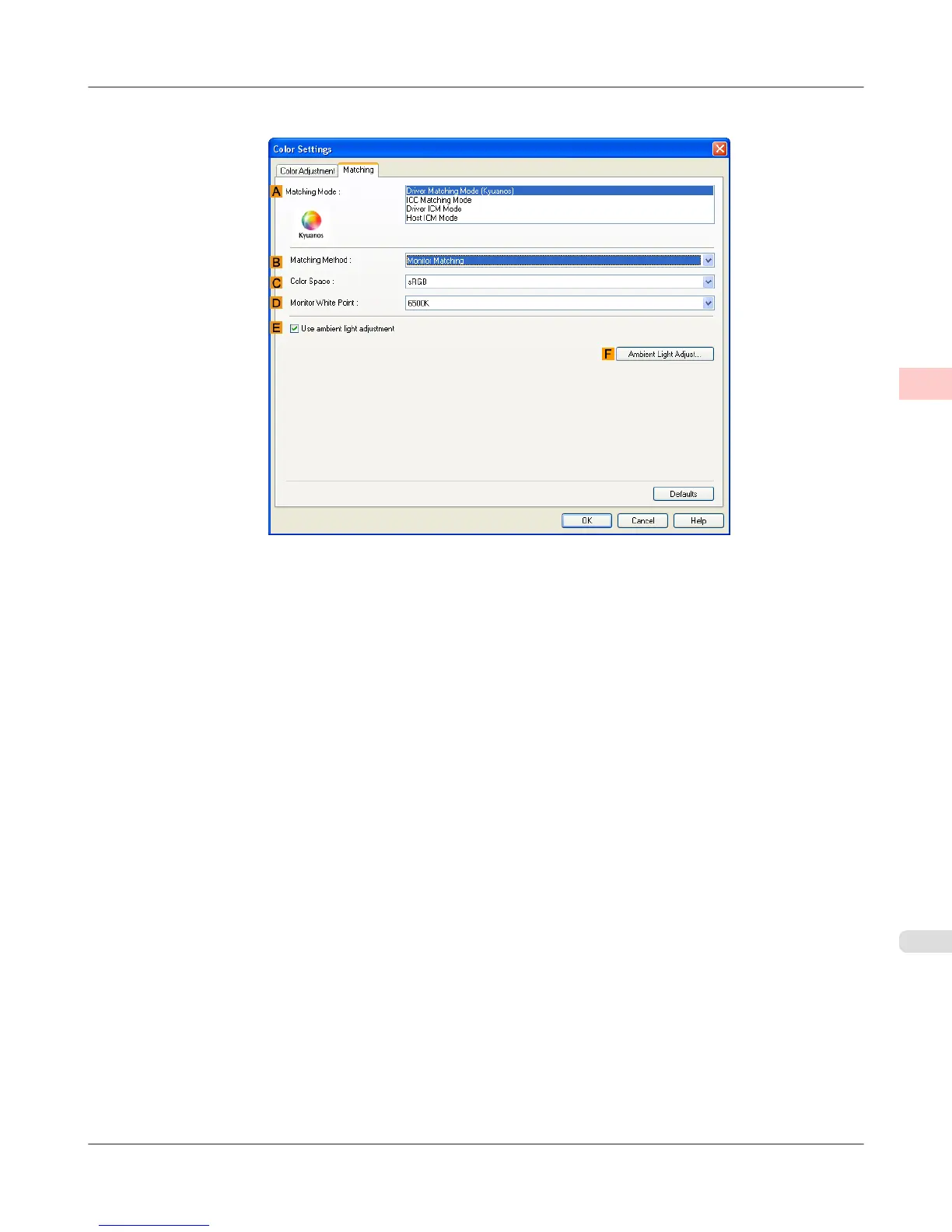

14. Click the Matching tab to display the Matching sheet.

15. In A Matching Mode, click Driver Matching Mode.

16. In C Color Space, click Adobe RGB.

17. Click OK to close the Color Settings dialog box.
