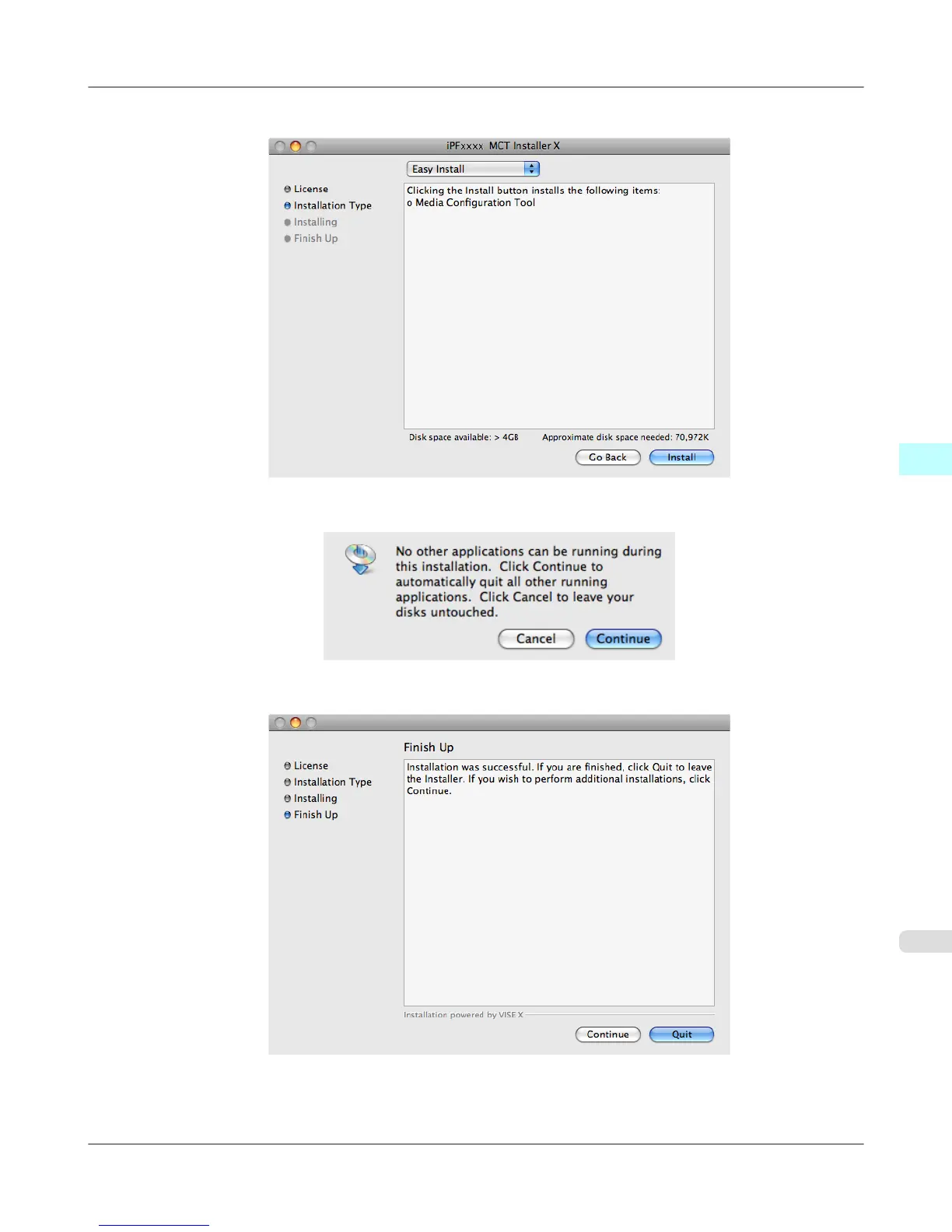

6. Select Easy Install then click the Install button.

Click the Continue button to quit another application.

8. When the following message is displayed, click the Quit button.

Mac OS X Software

Media Configuration Tool

iPF6300S Procedures for Installing

679
