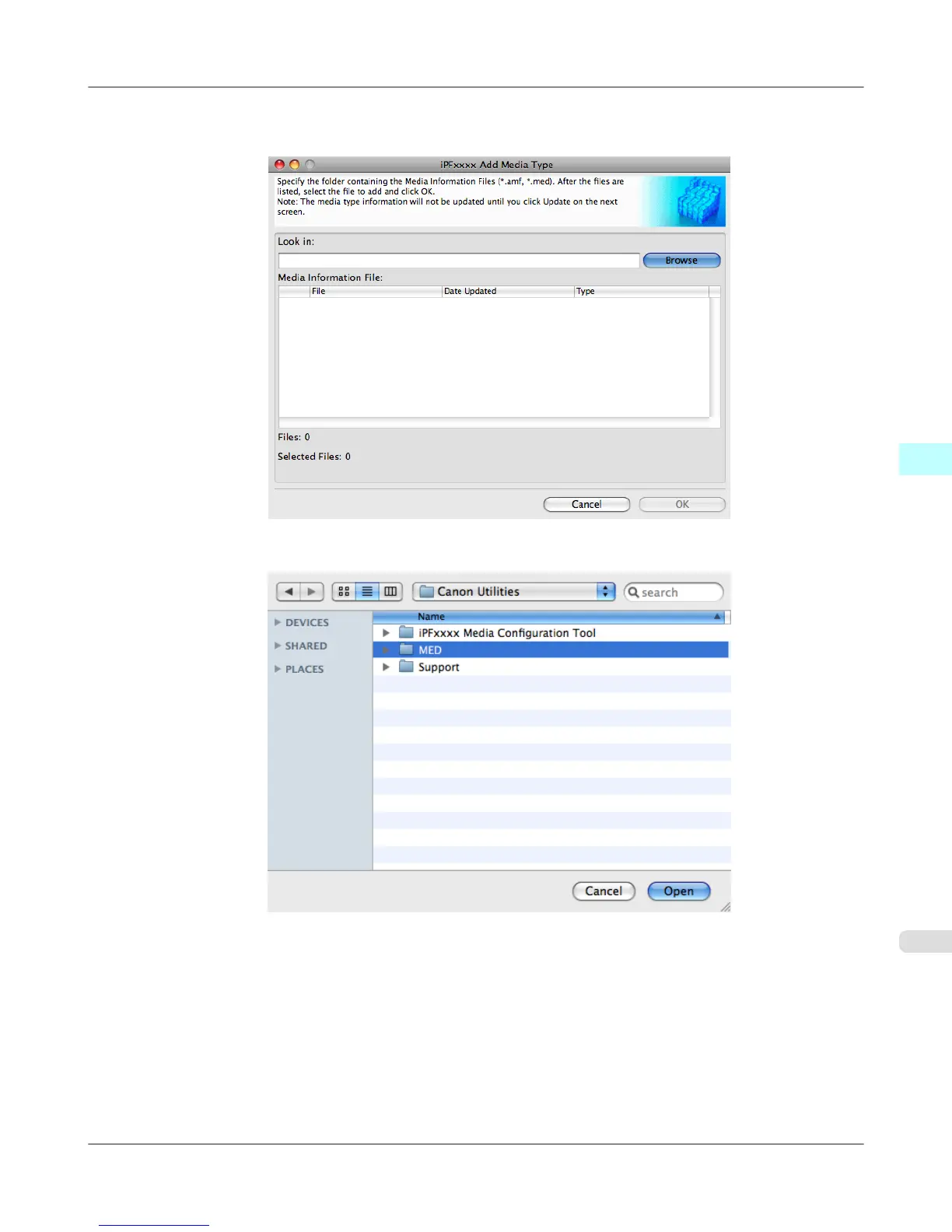

2. The Add Media Type dialog box displays.

Click the Browse button.

3. Select the folder that contains the media information files (.amf files), and then click the Open button.

Mac OS X Software

Media Configuration Tool

iPF6300S Adding Media Types

687
