Using imagePROGRAF Status Monitor (Windows)

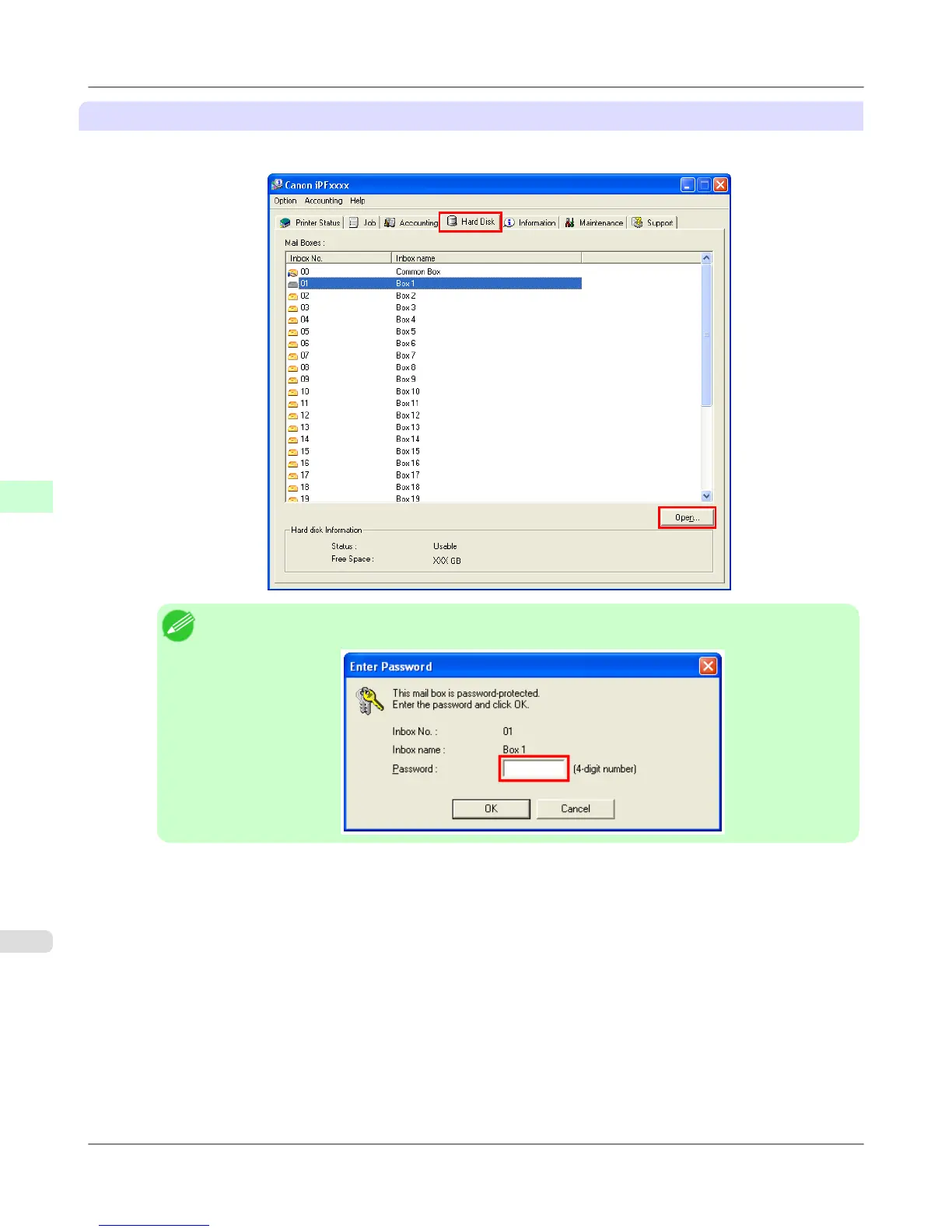

1. On the Hard Disk sheet, select the personal box and click Open.

Note

• Enter a password if one has been set for the personal box.

Print Job Operations

Advanced Print Job Operations

Naming Personal Boxes iPF6300S
