Using imagePROGRAF Status Monitor (Windows)

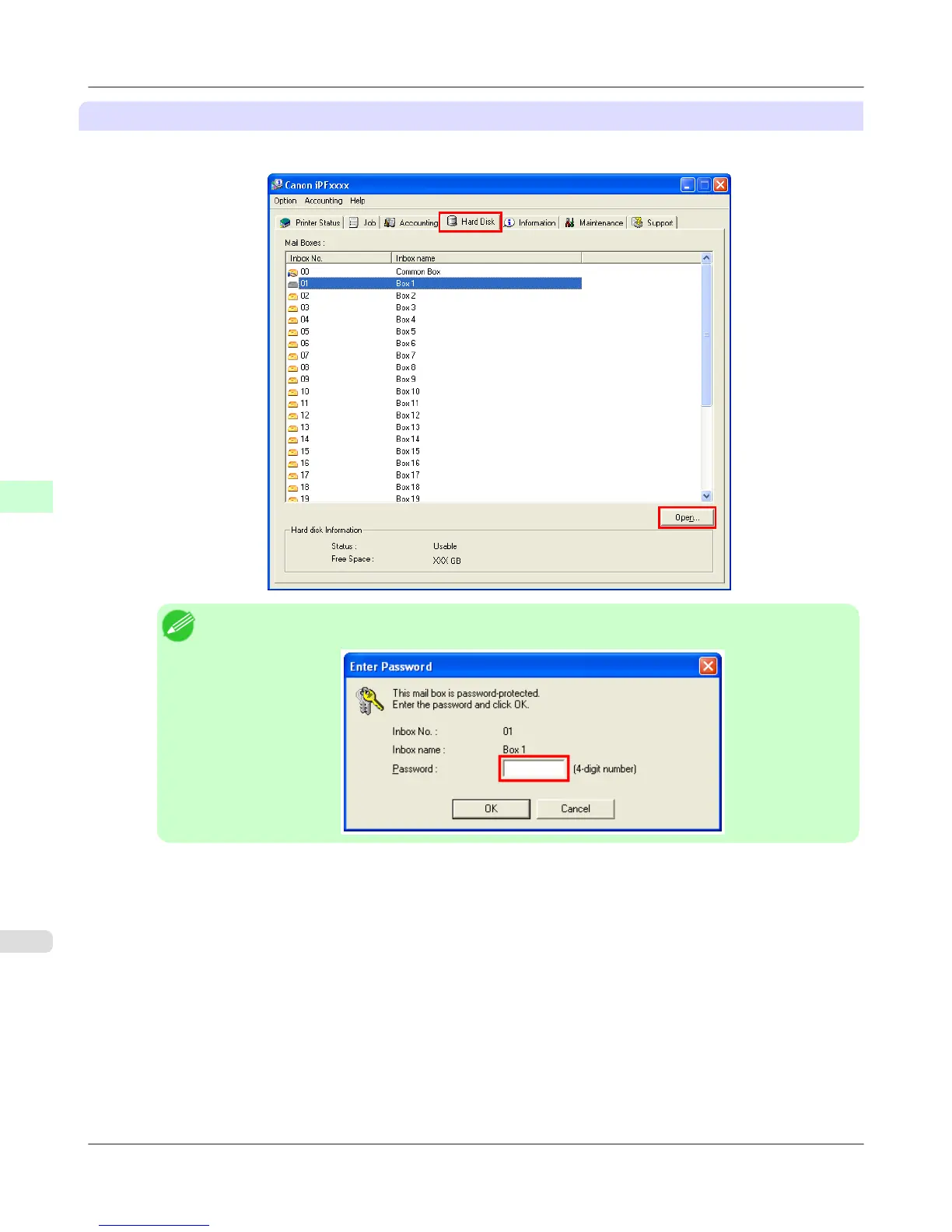

1. On the Hard Disk sheet, select a box and click Open.

Note

• Enter a password if one has been set.

Print Job Operations

Advanced Print Job Operations

Renaming Saved Jobs iPF6300S

768
