Canon imagePROGRAF iPF8400 Service Manual

Chapter 2
2-38
2.5.4 Paper path system
0014-8916

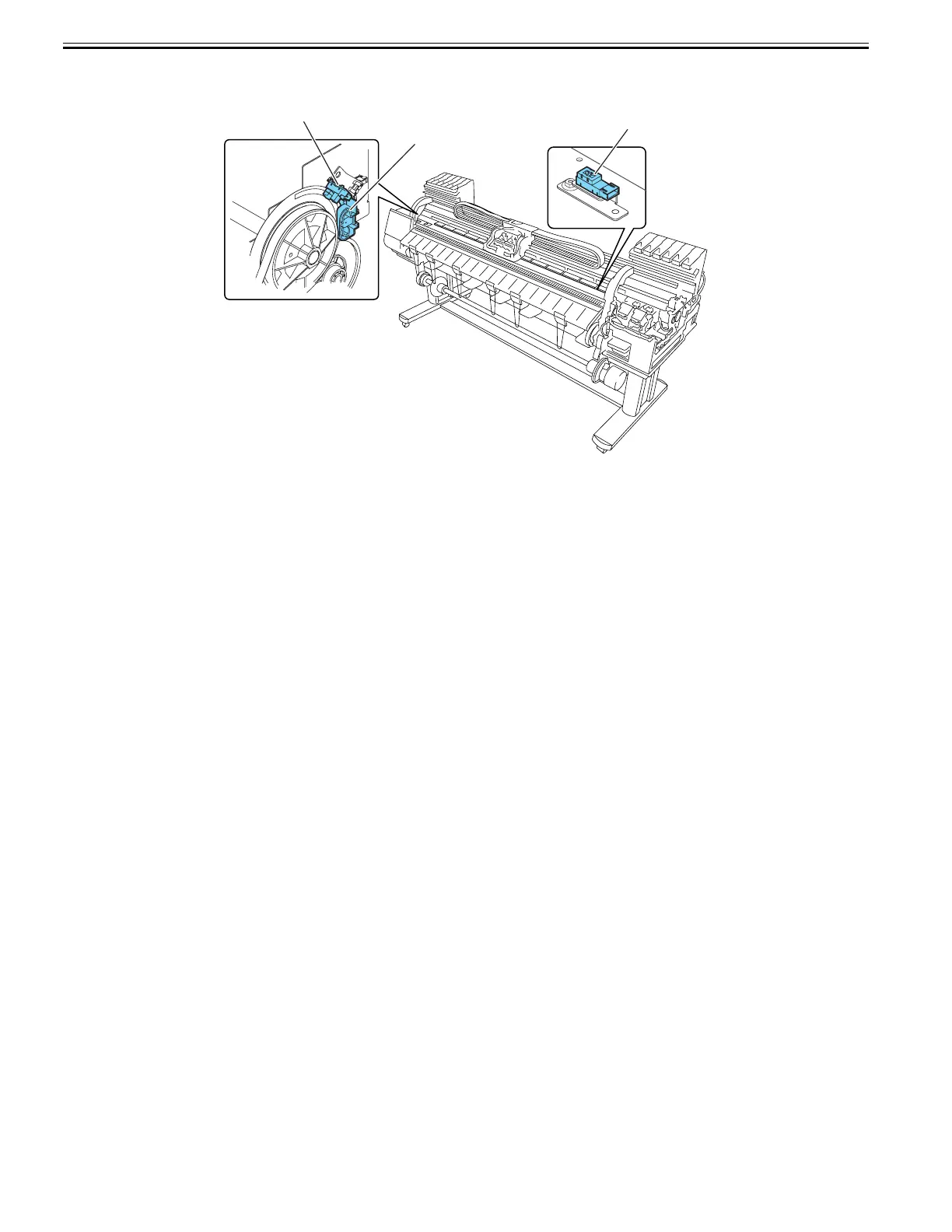

F-2-39
Media sensor
The photoreflector-based media sensor detects the presence or absence of paper on the platen.
The sensor detects the presence of paper when it receives sensor light reflected upon the paper.
Feed roller HP sensor
The feed roller HP sensor detects transitions from white (transmitted), or a reference, to black (shielded) when the printer is switched on, thereby setting the home
position of feed roller eccentricity correction.
Feed roller encoder sensor
The feed roller encoder sensor is driven to detect the length of paper feeding for each rotation of the feed roller from encoder slits.
Media sensor
Feed roller HP sensor
Feed roller
encoder
