Chapter 1
1-14

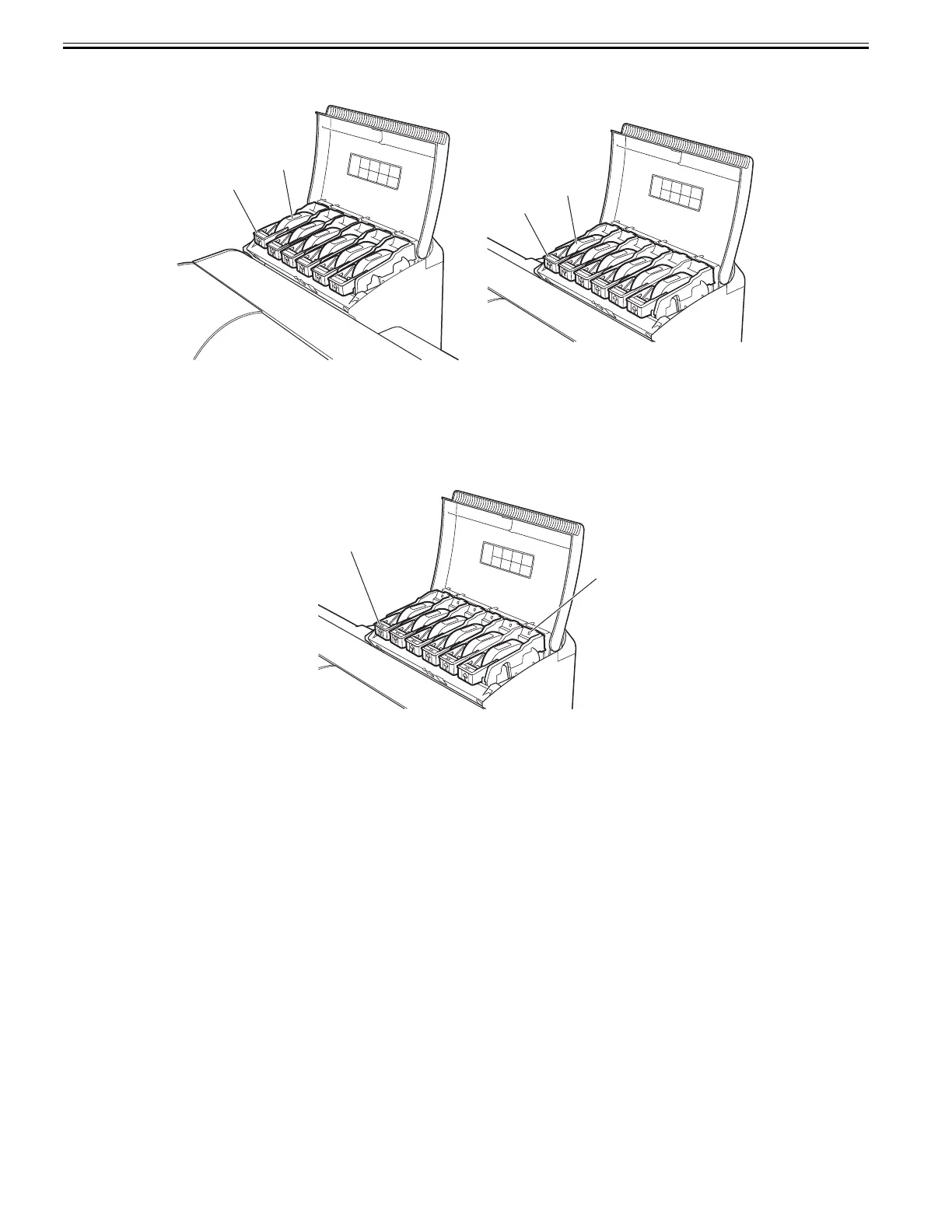

1.5.5 Ink Tank Cover (Inside)
0017-8301
F-1-20
[1] Ink Tank
Cartridges of ink in each color.
[2] Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink Tank. To open it, lift the stopper of the
lever until it stops, and then push it down toward the front. To close it, push it down until it clicks into place.
F-1-21
[3] Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
- On: The Ink Tank is installed correctly.
- Off: No Ink Tank is installed, or the ink level detection function is off.
- Flashing slowly: Not much ink is left.
- Flashing rapidly: Ink tank is empty.
[4] Ink Color Label
Load an Ink Tank that matches the color and name on this label.
[1]
<Left> <Right>
[1]
[2]
[2]
[4]
[3]
To Next Page
