1.7 Safety and Precautions

1.7.1 Safety Precautions

1.7.1.1 Moving Parts

0012-6284

Be careful not to get your hair, clothes, or accessories caught in the moving parts of the printer.

These include the carriage unit activated by the carriage motor, the carriage belt, the ink tube and the flexible cable; the feed motor-driven the feed roller, the pinch

roller; and the purge motor-driven the purge unit.

To prevent accidents, the upper cover of the printer is locked during printing so that it does not open. If the upper cover is opened in the online/offline mode, the

carriage motor, feed motor, and other driving power supplies are turned off.

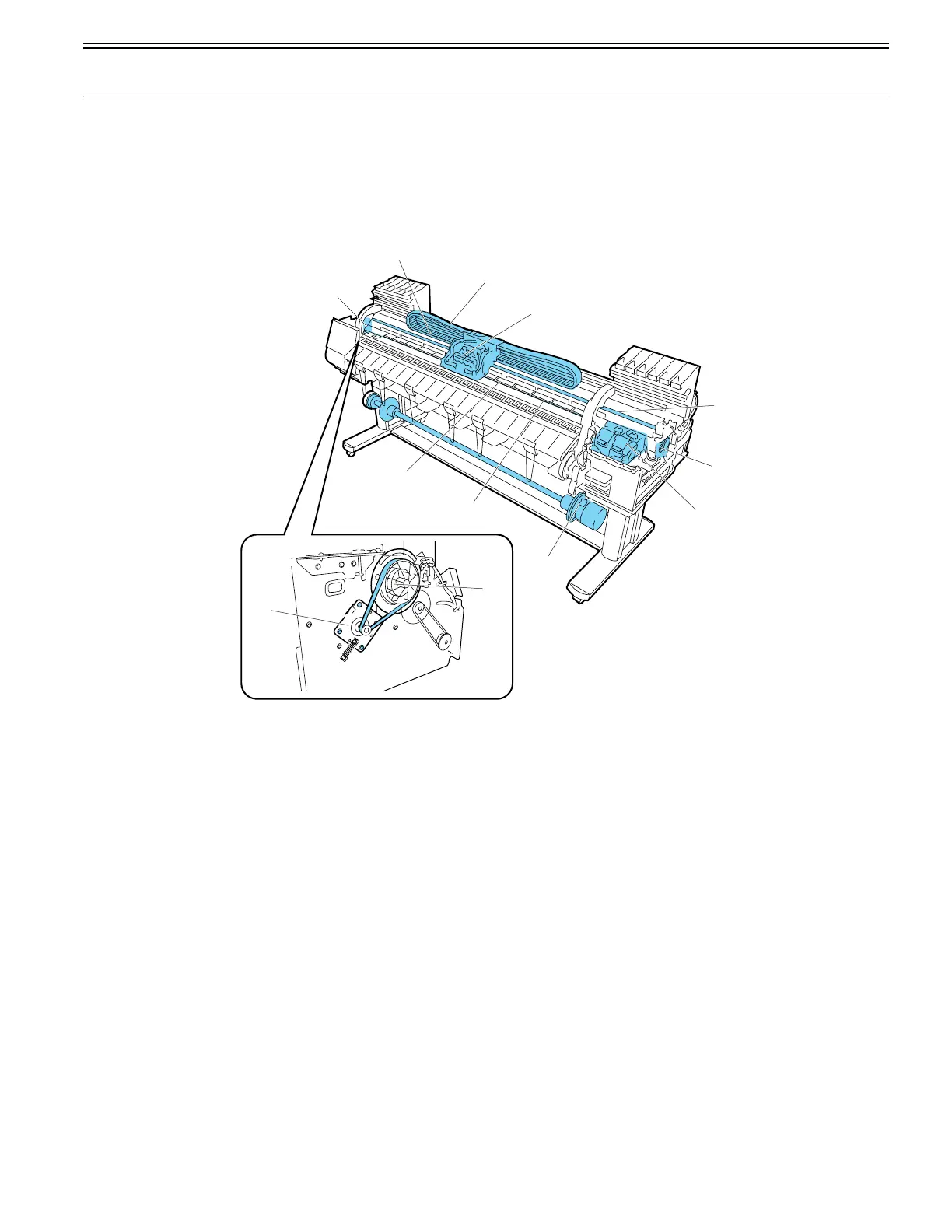

F-1-37

[1] Carriage belt [7] Purge unit

[2] Ink tube [8] Pinch roller

[3] Flexible cable [9] Feed roller

[4] Carriage unit [10] Feed unit

[5] Carriage motor [11] Feed motor

[6] Lift unit [12] Media take-up unit
