Chapter 2
2-26
2.3.3.3 Cutter Unit
2.3.3.3.1 Structure of Cu
tter Unit
0012-6386
If the print driver is configur
ed to use a cutter with roll media, cutter unit attached to the left side
of the carriage cuts r
oll media automatically. Cutter unit won't cut
roll media if the print driver
is configured otherwise.

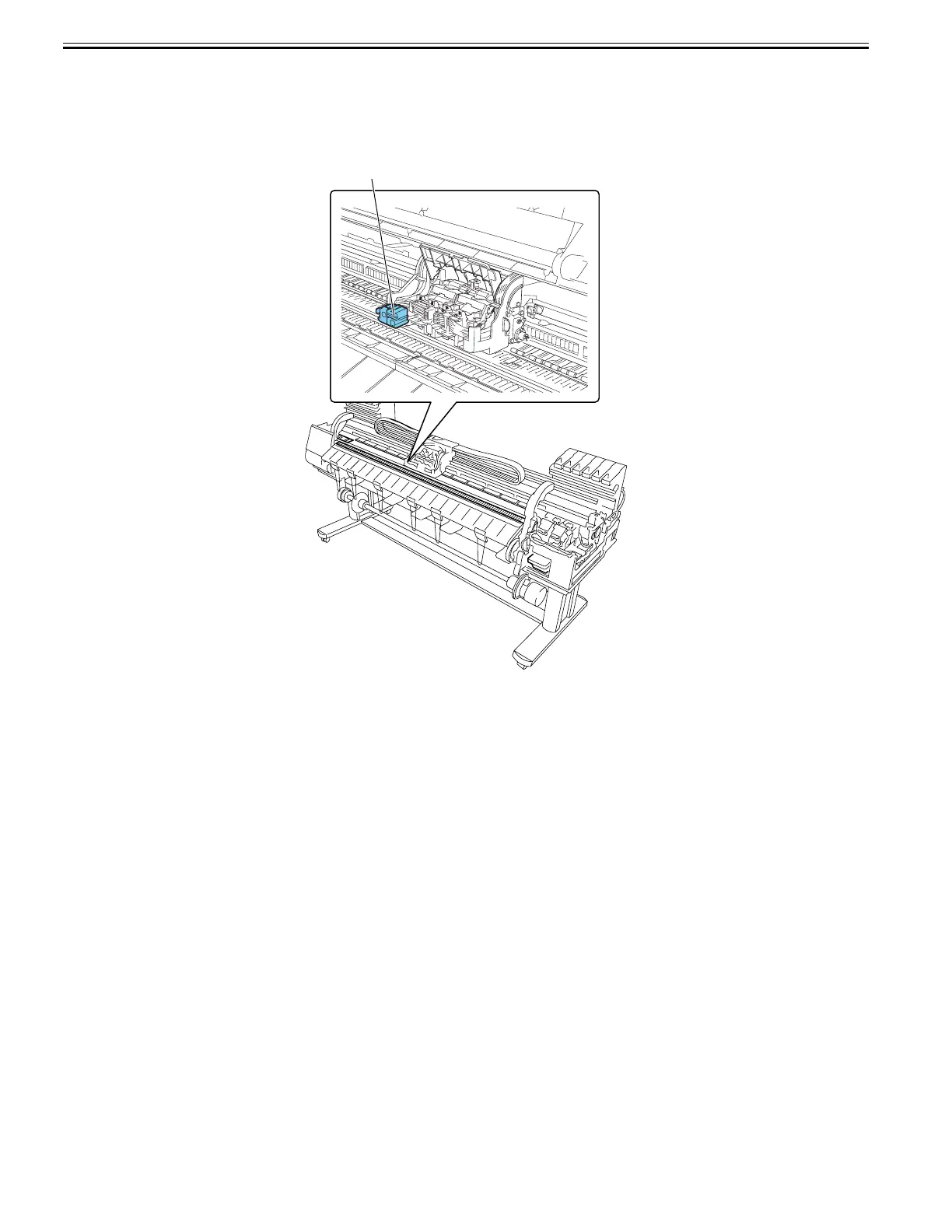

F-2-22
Cutter unit
91
93
