Chapter 1
1-13

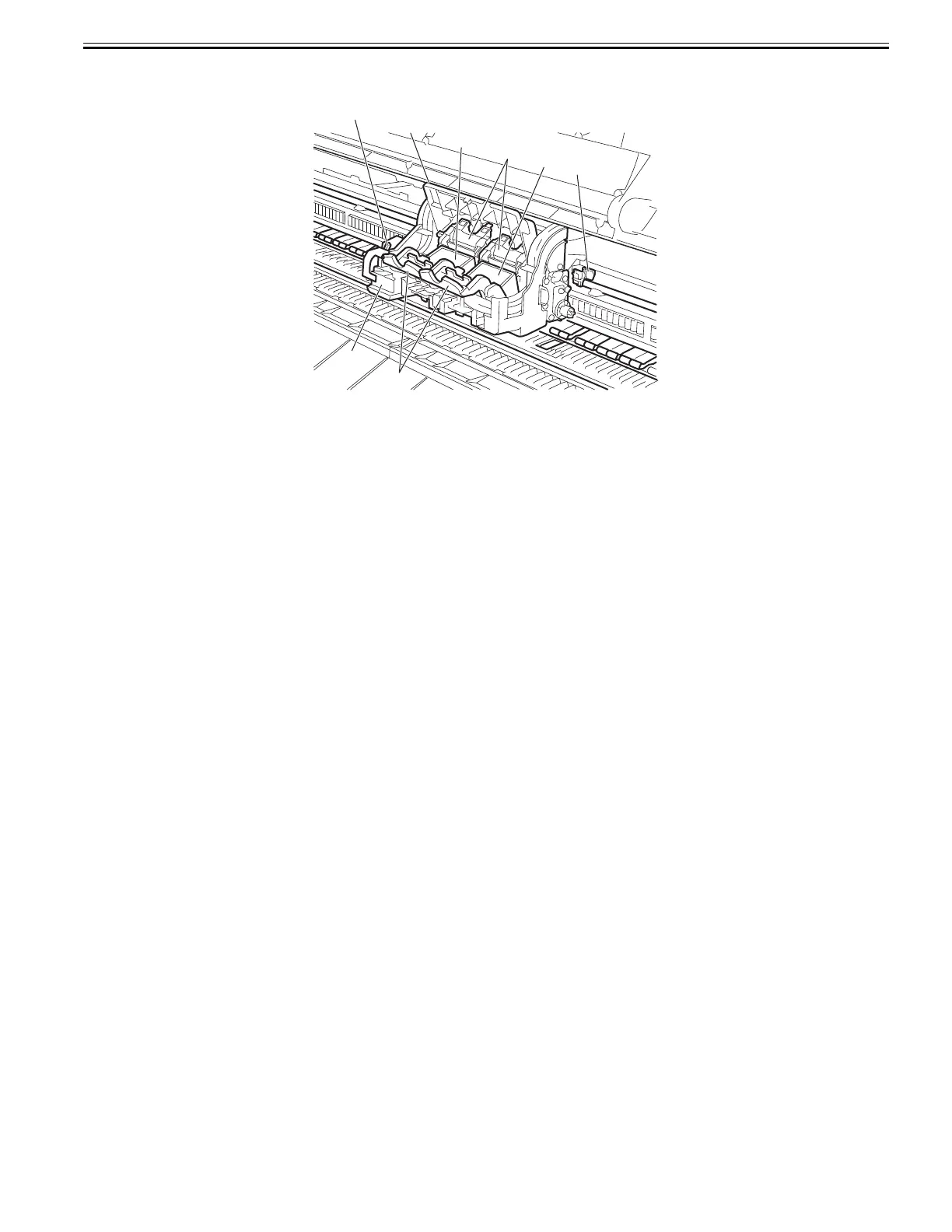

1.5.4 Carriage
0024-9420
F-1-19
[1] Printhead Fixer Cover
Holds the Printhead in place.
[2] Printhead
Equipped with ink nozzles. Printheads serve a key role in printing.
[3] Carriage Cover
Protects the Carriage.
[4] Cutter Unit
A round-bladed cutter for automatic paper cutting. The cutter blade is retracted inside when not cutting.
[5] Printhead Fixer Lever
Locks the Printhead Fixer Cover.
[6] Shaft Cleaner
Prevents the Carriage Shaft from becoming dirty.
[7] Cutter Unit Detachment Lever
Used when replacing the Cutter Unit.
[3]
[6]
[2]
[4]
[5]
[2]
[1]
[7]
