Canon imagePROGRAF iPF8400 - Linear Encoder

Chapter 4
4-27
4.3.11 Linear Encoder
0014-8985

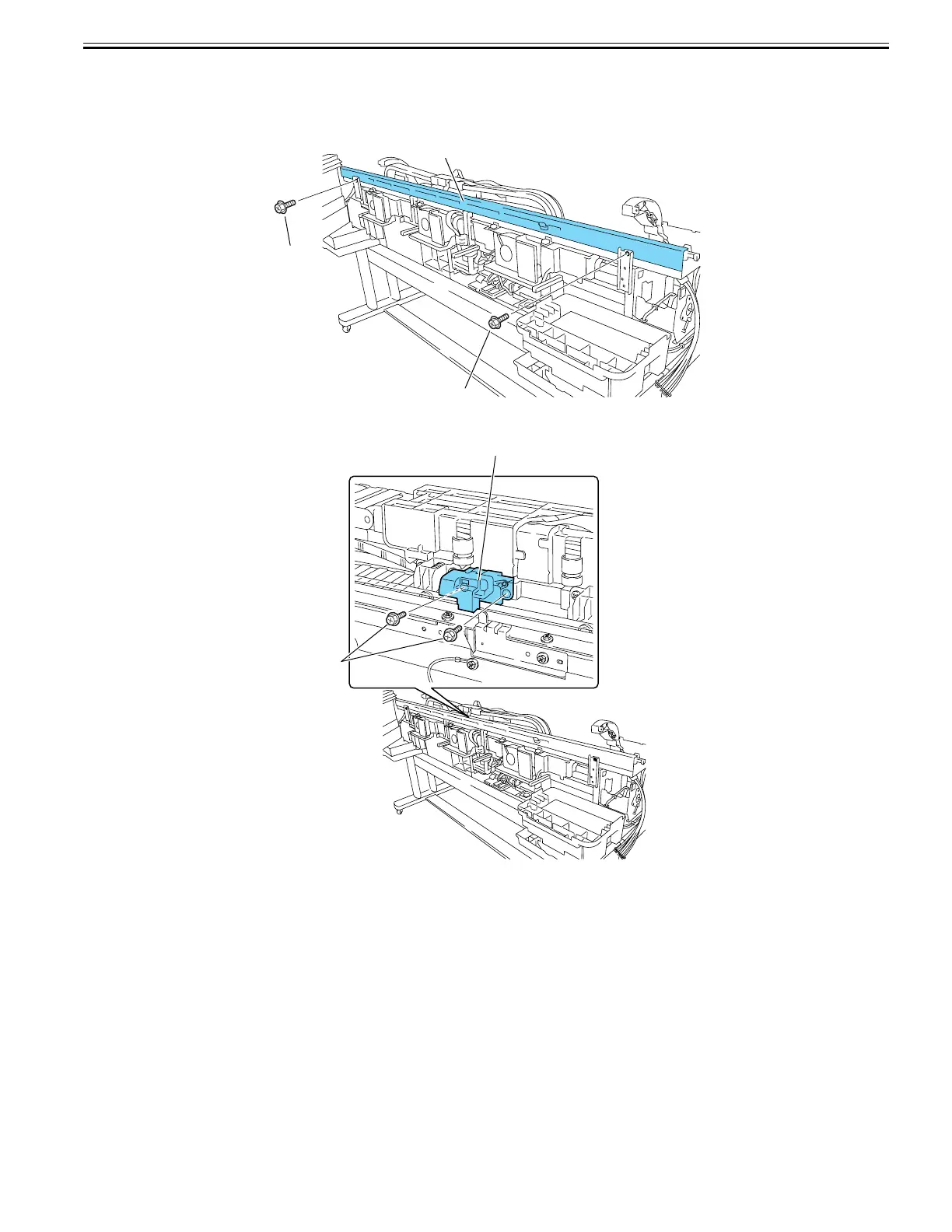

a) Removing the linear encoder
1) Move the carriage to above the platen.
2) Remove two screws [1] and upper rear stay [2].
F-4-45
3) Remove two screws [1] and linear encoder [2].
F-4-46
[1]
[1]
[2]
[1]
[2]
