1.7.1.3 Electric Parts
0012-6287
The electrical unit of the printer is activated when connected to the AC power supply.
At the rear of the printer are the main controller, power supply, interface connector, and optional media take-up unit connector. The head relay PCB and carriage
relay PCB are incorporated in the carriage unit, and the operation panel is located on the upper right cover.
When servicing the printer with the cover removed, be extremely careful to avoid electric shock and shorting contacts.

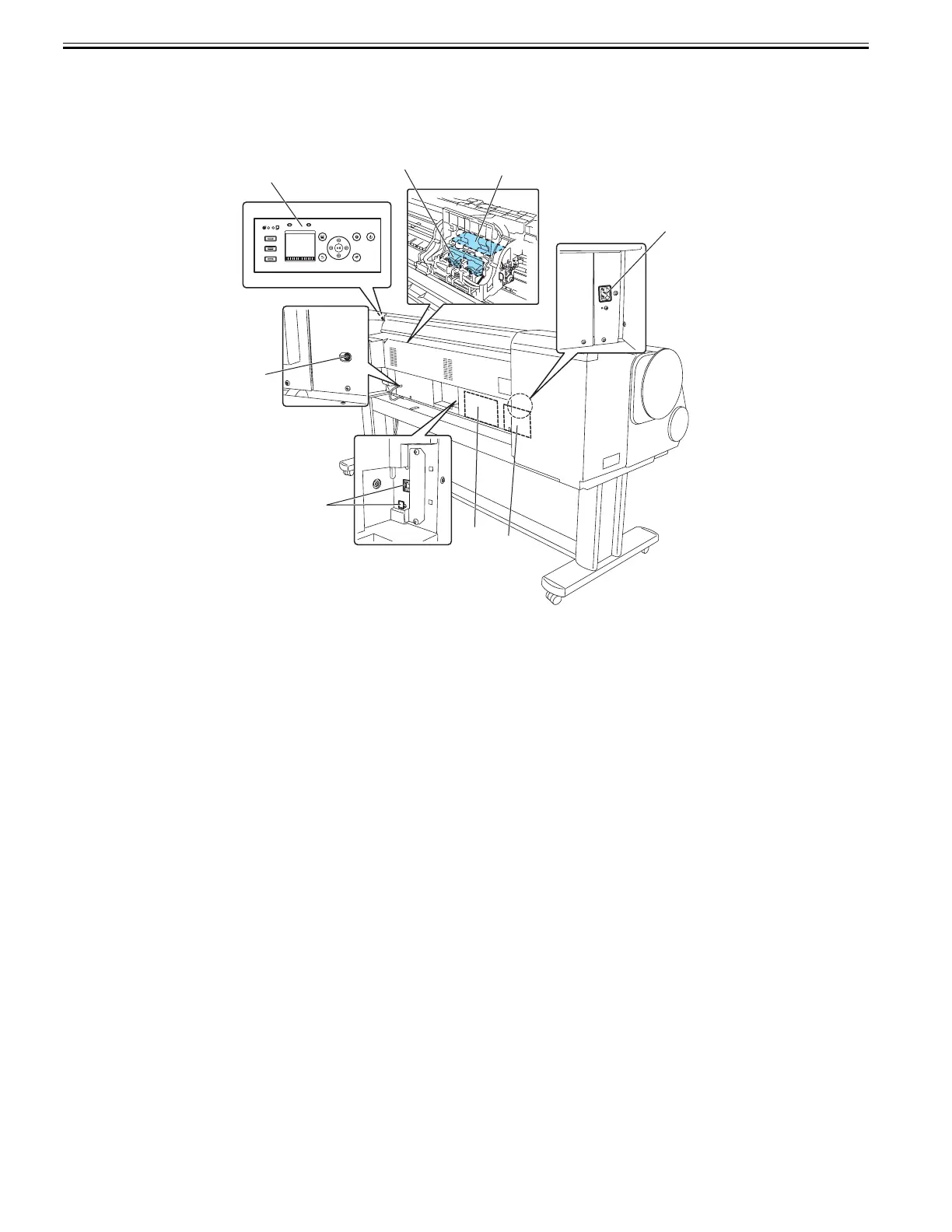

F-1-40
[1] Operation panel [5] Power Supply
[2] Carriage relay PCB [6] Main controller PCB
[3] Head relay PCB [7] Interface connector
[4] AC inlet [8] Media take-up unit connector
