Chapter 2
2-21
The timing at which the rotating rollers rotate
is detected by the pump ca
m sensor, w
ith the distance of
rotation being control
led by the driving of the purge motor.

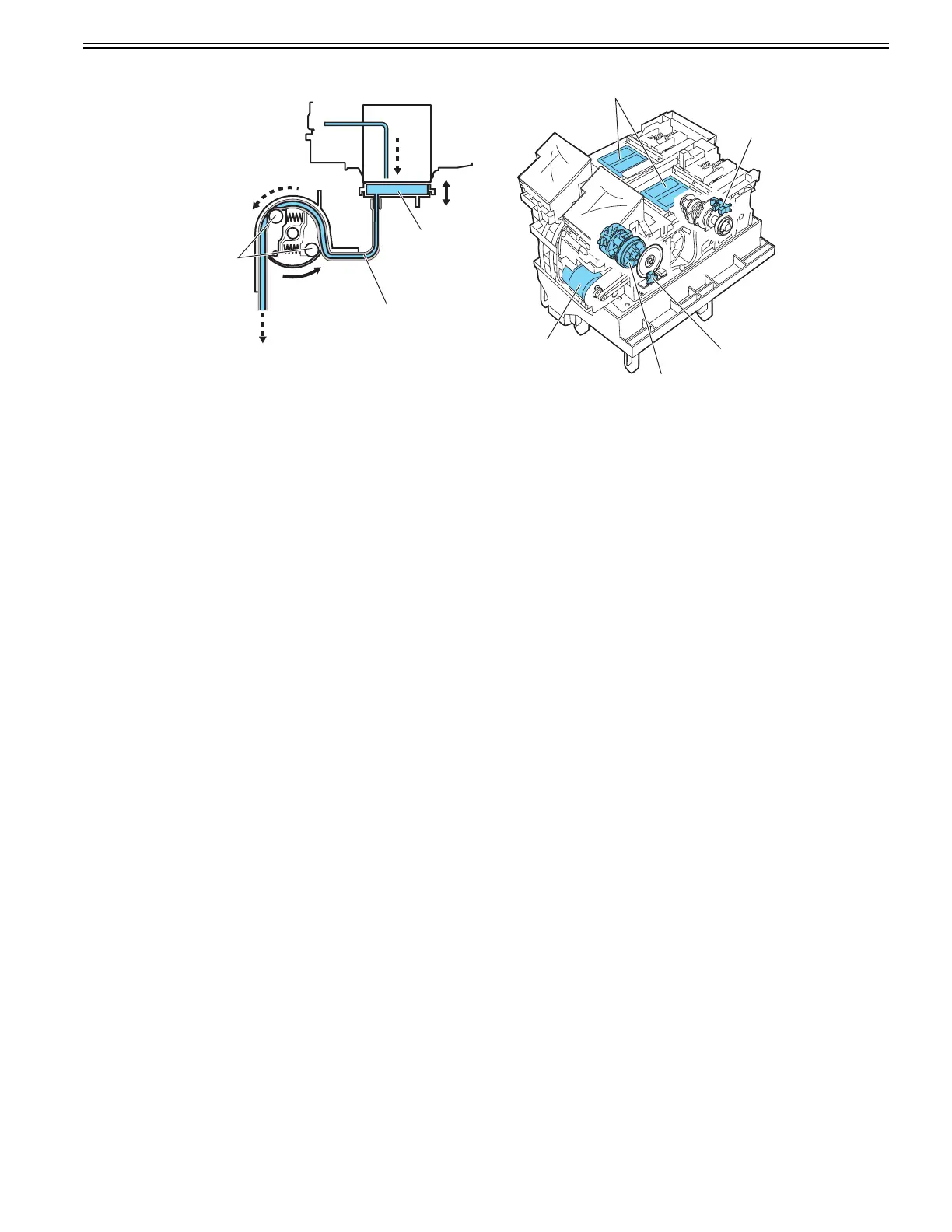

F-2-17
Cap
Purge motor
Pump encoder sensor
Pump cam sensor
Cap
Ink tubes
Suction pump
Rotating rollers
Suction pump
86
88
