6-4

Routine Maintenance

Replacing the Toner Cartridge

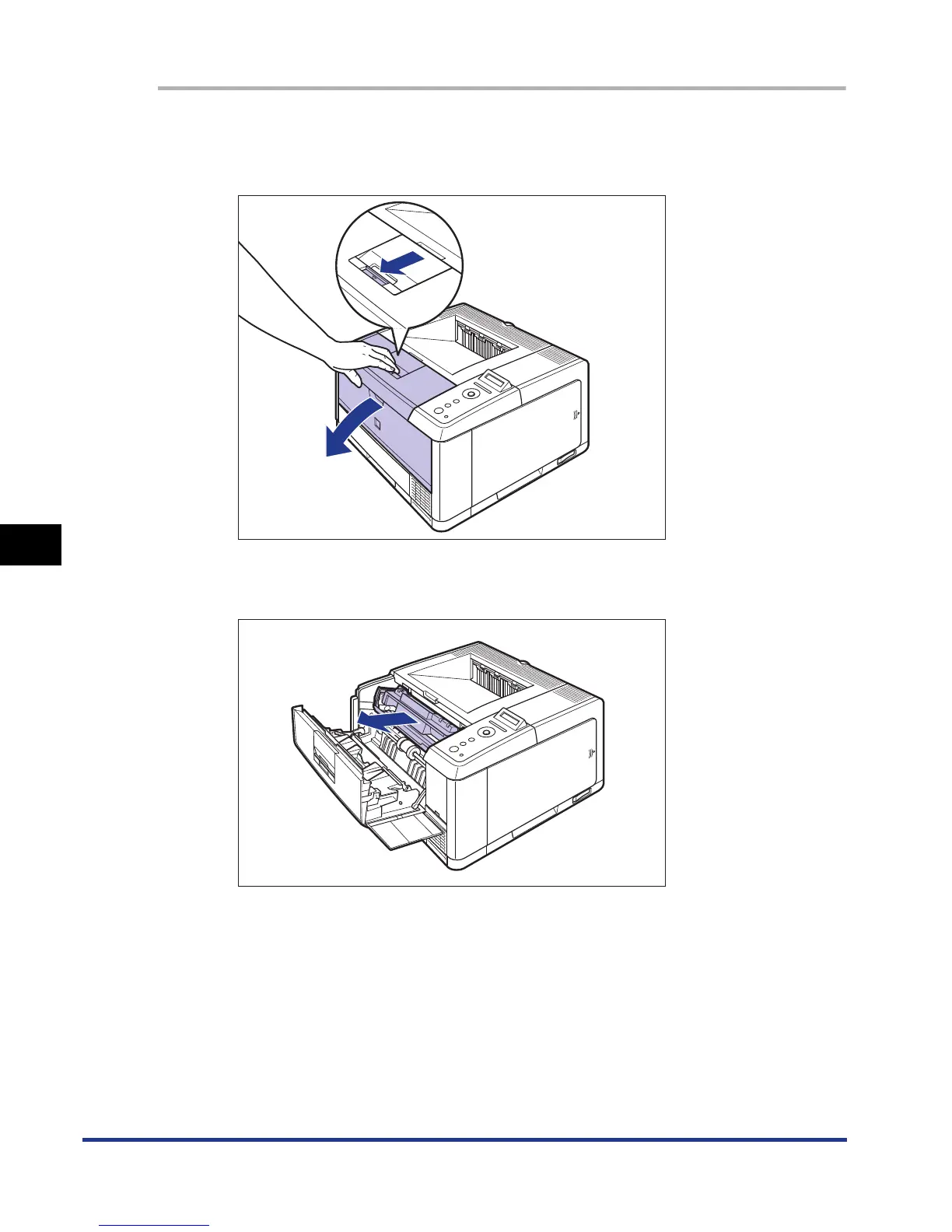

Open the front cover.

While pressing the lever on the top of the front cover, open it gently.

Remove the toner cartridge from the printer.
