CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-9

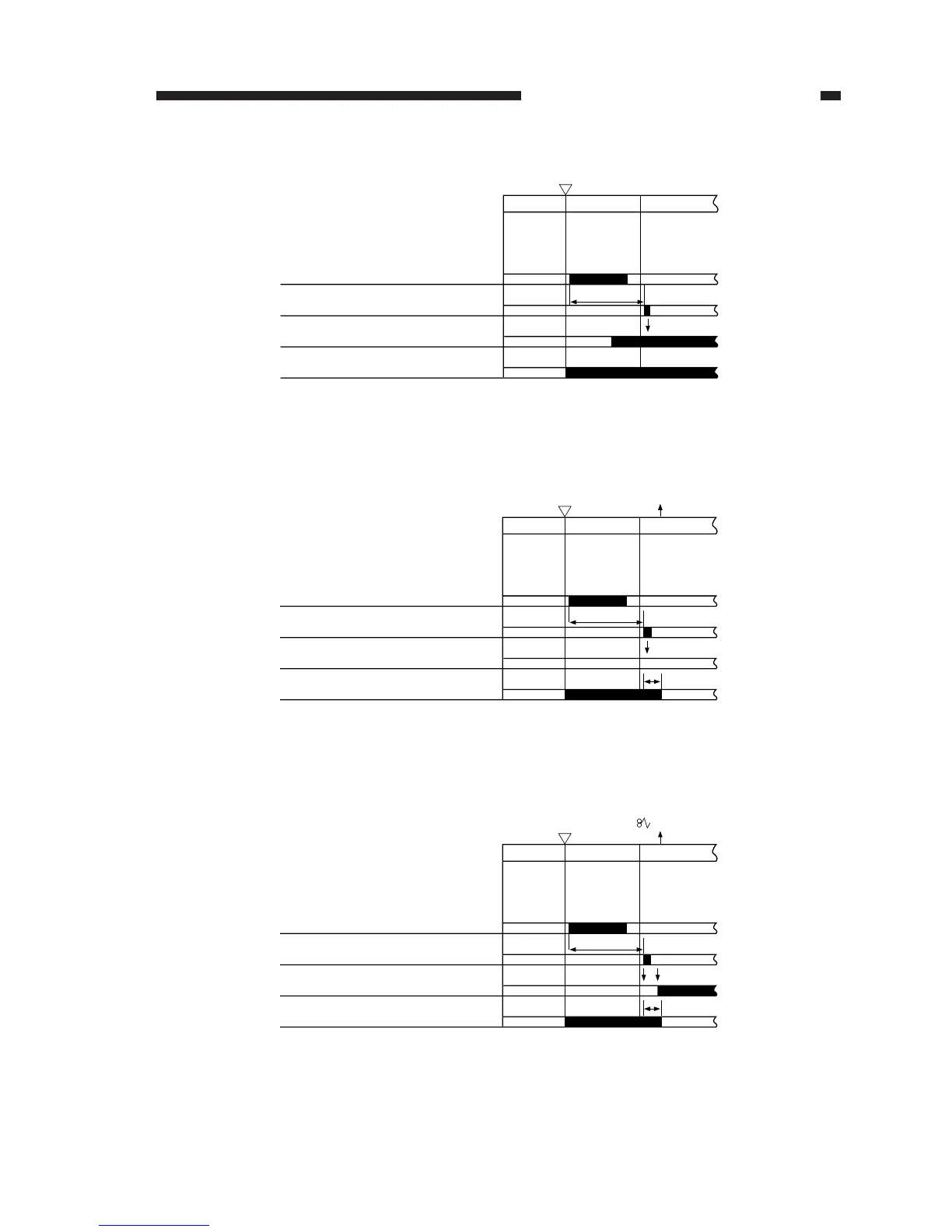

Figure 5-110 (normal)
Figure 5-111 (no paper)
Figure 5-112 (jam)
Copy Start key
ON
STBY INTR SCFW
Pickup clutch solenoid (SL1)
Jam check
Pre-registration roller paper
sensor (Q751)
Main motor (M1)
2.6sec
Normal
Copy Start key
ON
STBY INTR SCFW
Pickup clutch solenoid (SL1)
Jam check
Pre-registration roller paper
sensor (Q751)
Main motor (M1)
2.6sec
No paper
P indication
1.5sec
Copy Start key
ON
STBY INTR SCFW
Pickup clutch solenoid (SL1)
Jam check
Pre-registration roller paper
sensor (Q751)
Main motor (M1)
2.6sec
Jam
1.5sec
No paper
indication
