Canon NP6512 - Delivery Assembly

CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 5-30
E. Delivery Assembly
1. Removing the Delivery Roller
1) Remove the fixing lower roller.
(See Chapter 6.II.A.3. “Removing the Fix-
ing Lower Roller.”)
2) Remove the two screws [1], and detach
the side plate [2] and the four gears [3].

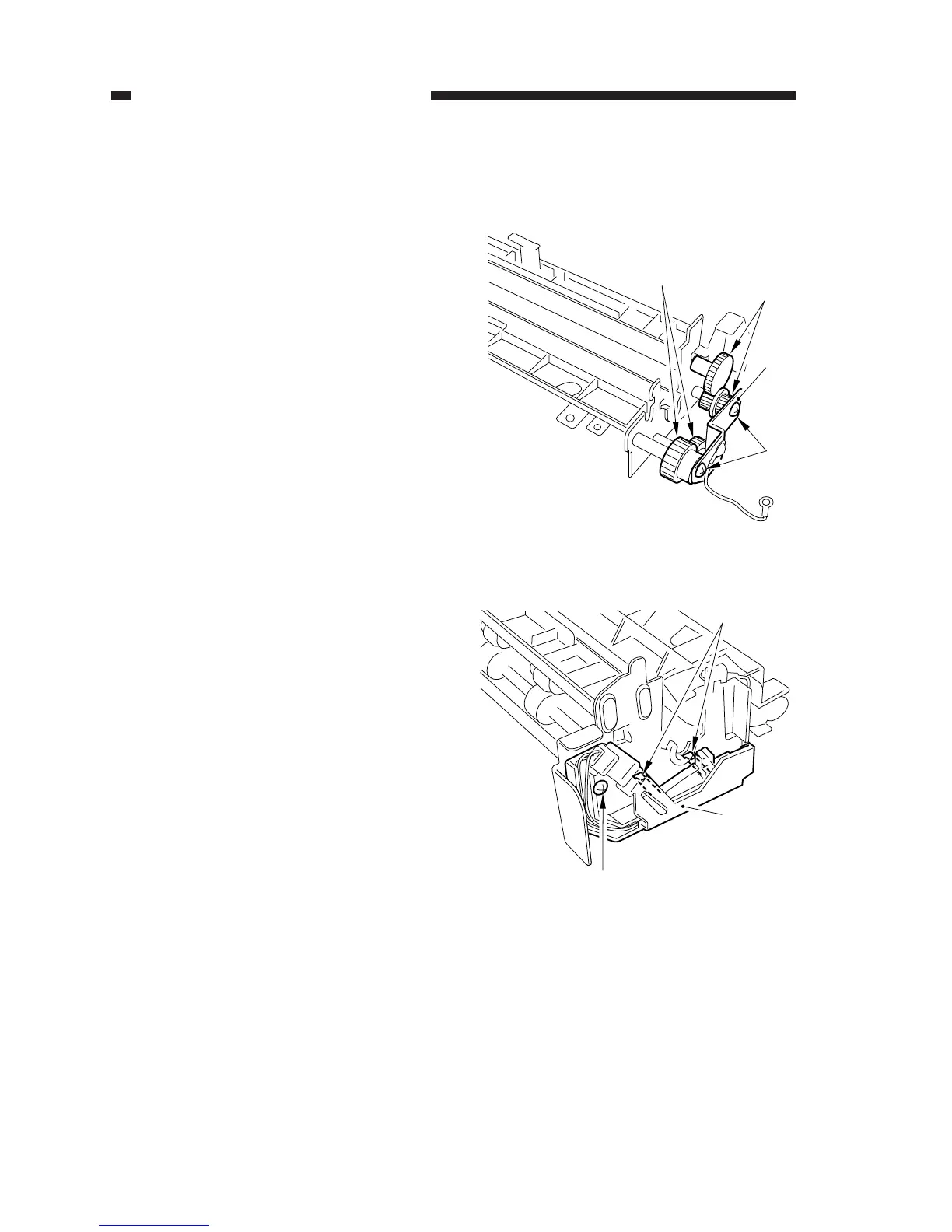

Figure 5-233
Figure 5-234
3) Remove the screw [4], and free the two
hooks [5]; then, detach the sensor holder
[6].
[1]
[3]
[3]
[2]
[4]
[5]
[6]
