CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-29

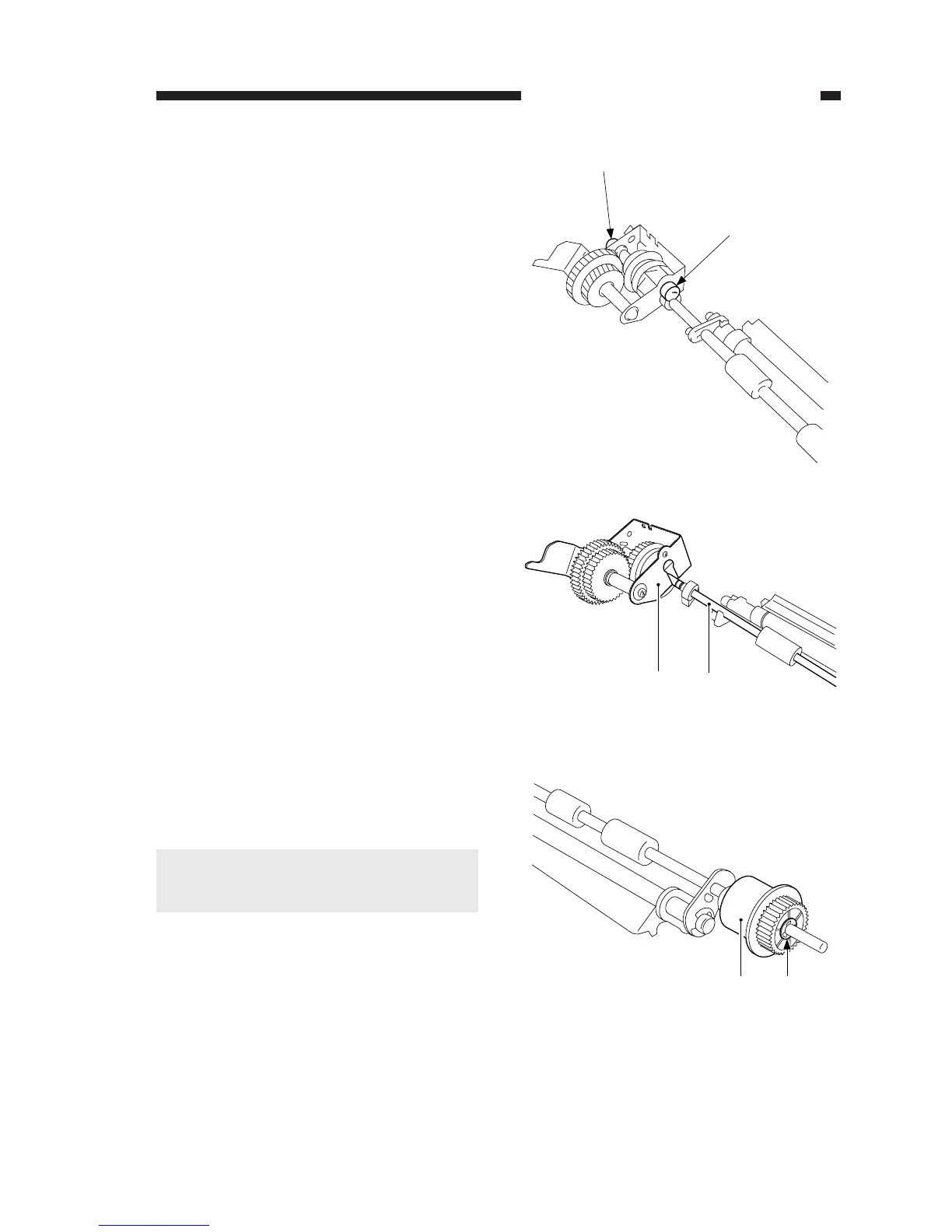

4) Remove the two bushings [5].
[5]
[5]
Figure 5-230
5) While moving down the registration roller
[6], detach it from the gear unit [7].
Figure 5-231
6) Remove the E-ring [8], and pull out the
clutch [9].
Figure 5-232
[7] [6]
[8]
[9]
Caution:
Take care not to lose the pin from the
rear of the clutch.
To Next Page
