D. Feeding System
1. Pickup Roller
1) Remove the drive unit [1].
(See “C.1. Drive Unit.”)
2) Remove the E-ring [2], and remove the
shaft [3]; then, detach the pickup roller 1
[4].
3) Remove the stop ring [5].

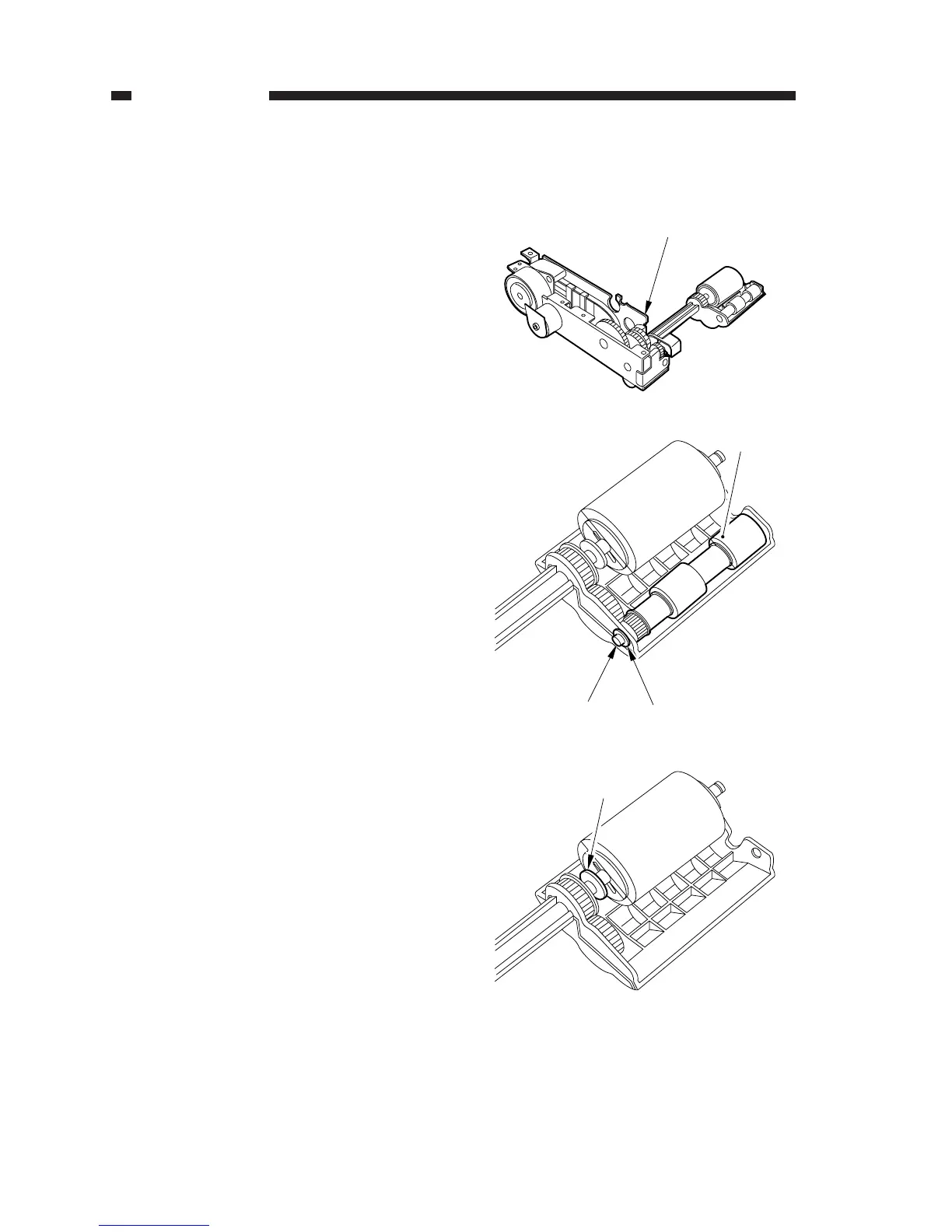

Figure 8-216
Figure 8-217
Figure 8-218
[1]
[5]
[2]
[3]
[4]
