CHAPTER 8 ADF
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
8-27
4) Remove the two straight pins [6], and re-
move the pickup roller 2 [8] while moving
the cover [7] in the direction of the arrow.

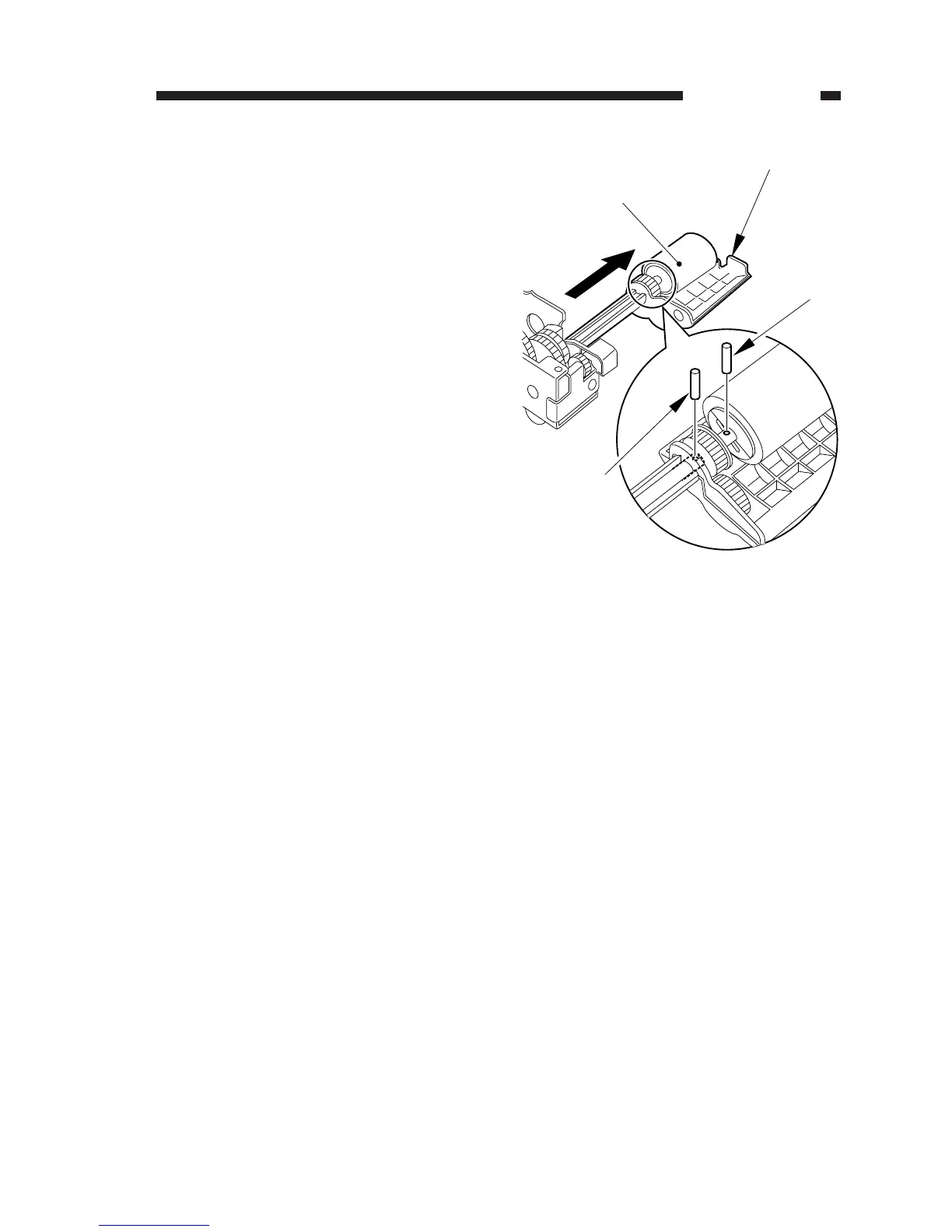

Figure 8-219
[6]
[6]
[7]
[8]
