CHAPTER 8 ADF
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
8-25
7) Disconnect the two connectors [12], and
remove the five screws [13]; then, remove
the drive unit [14].

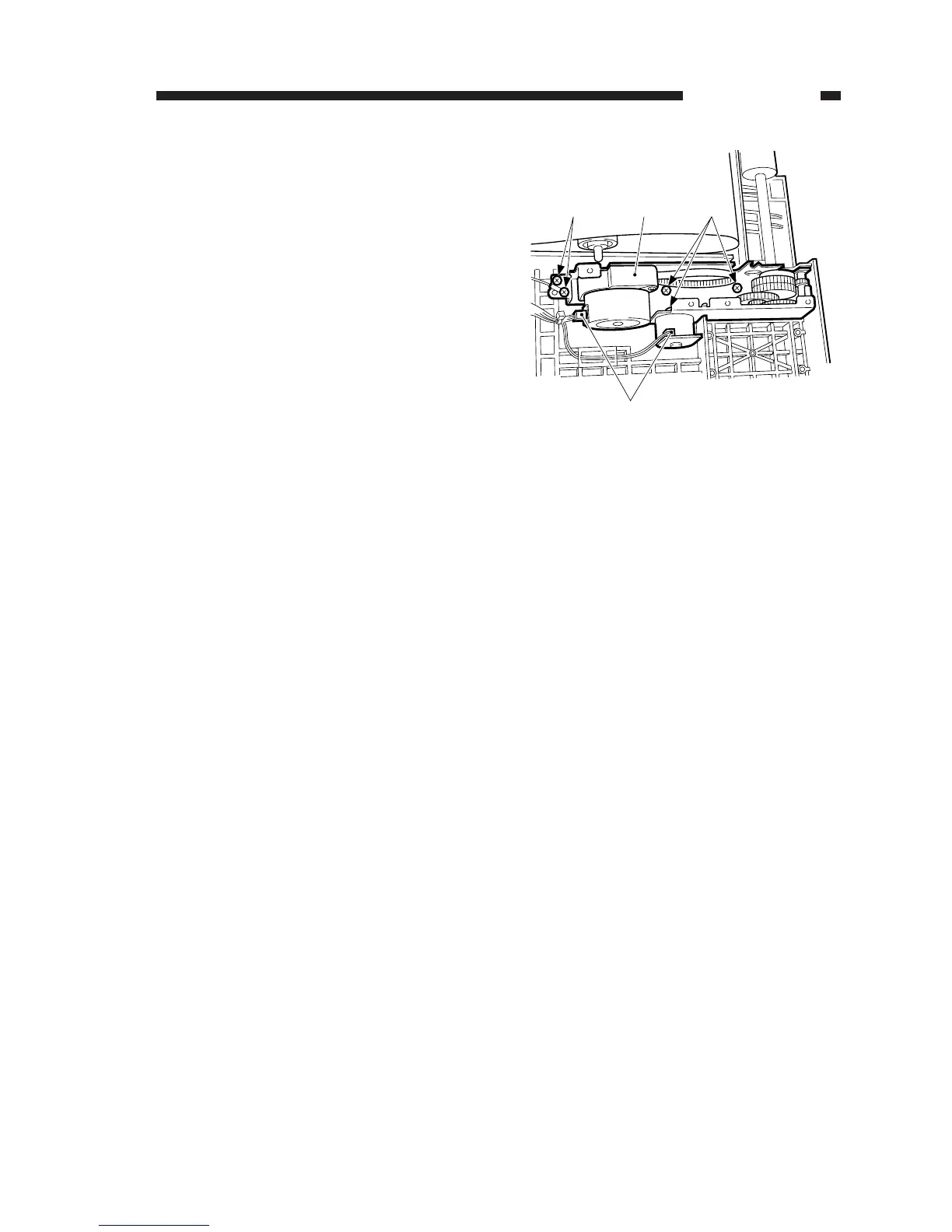

Figure 8-215
[12]
[13] [14]
[13]
