CHAPTER 8 ADF
COPYRIGHT
©
1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
8-24

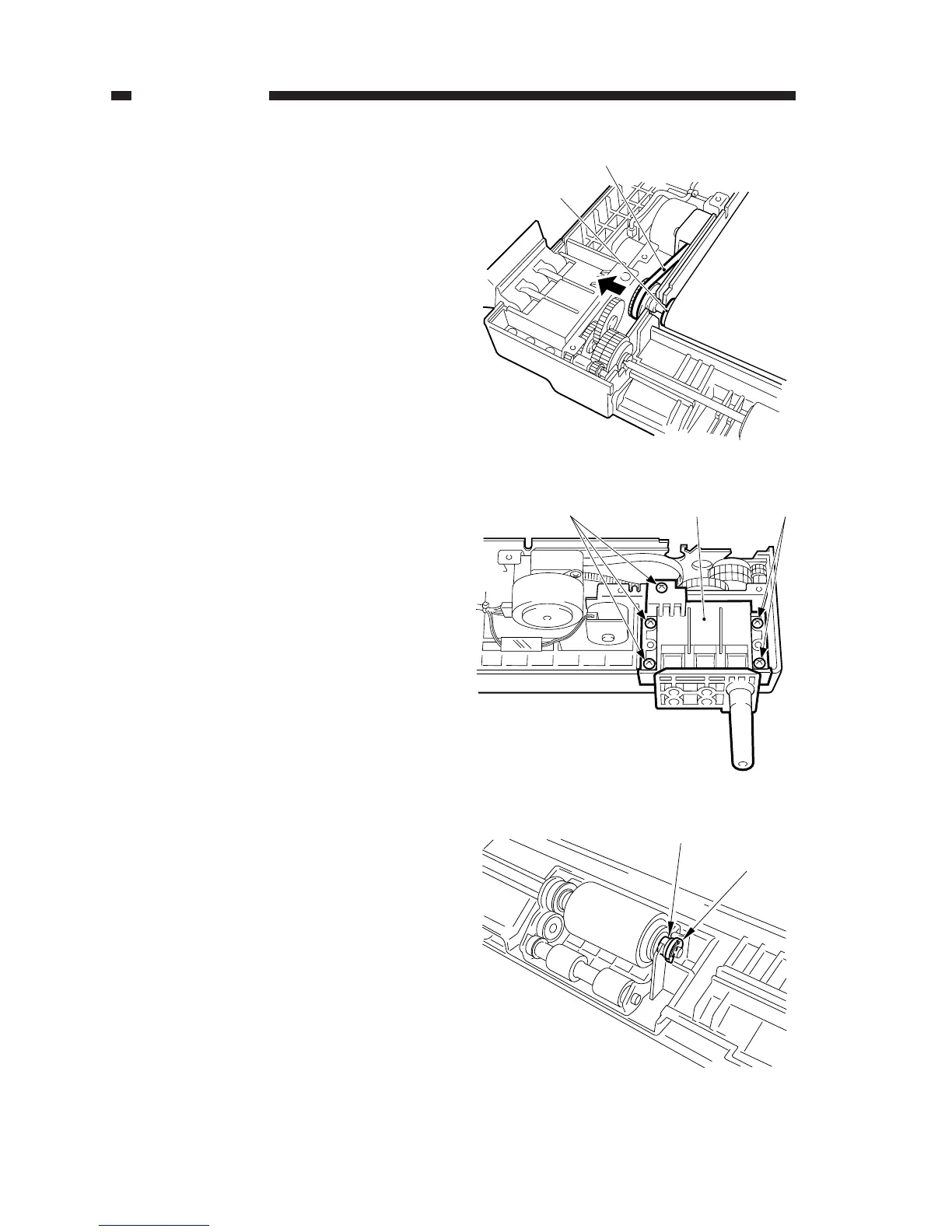

4) Remove the timing belt [6], and remove
the feeding belt roller [7] by shifting it in
the direction of the arrow.
5) Remove the five screws [9], and remove
the right hinge unit [8].
6) Remove the stop ring [10] (resin) and the
bushing [11].
Figure 8-212
Figure 8-213
Figure 8-214
[6]
[7]
[9]
[9]
[9]
[10]
[11]
To Next Page
