CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 5-22

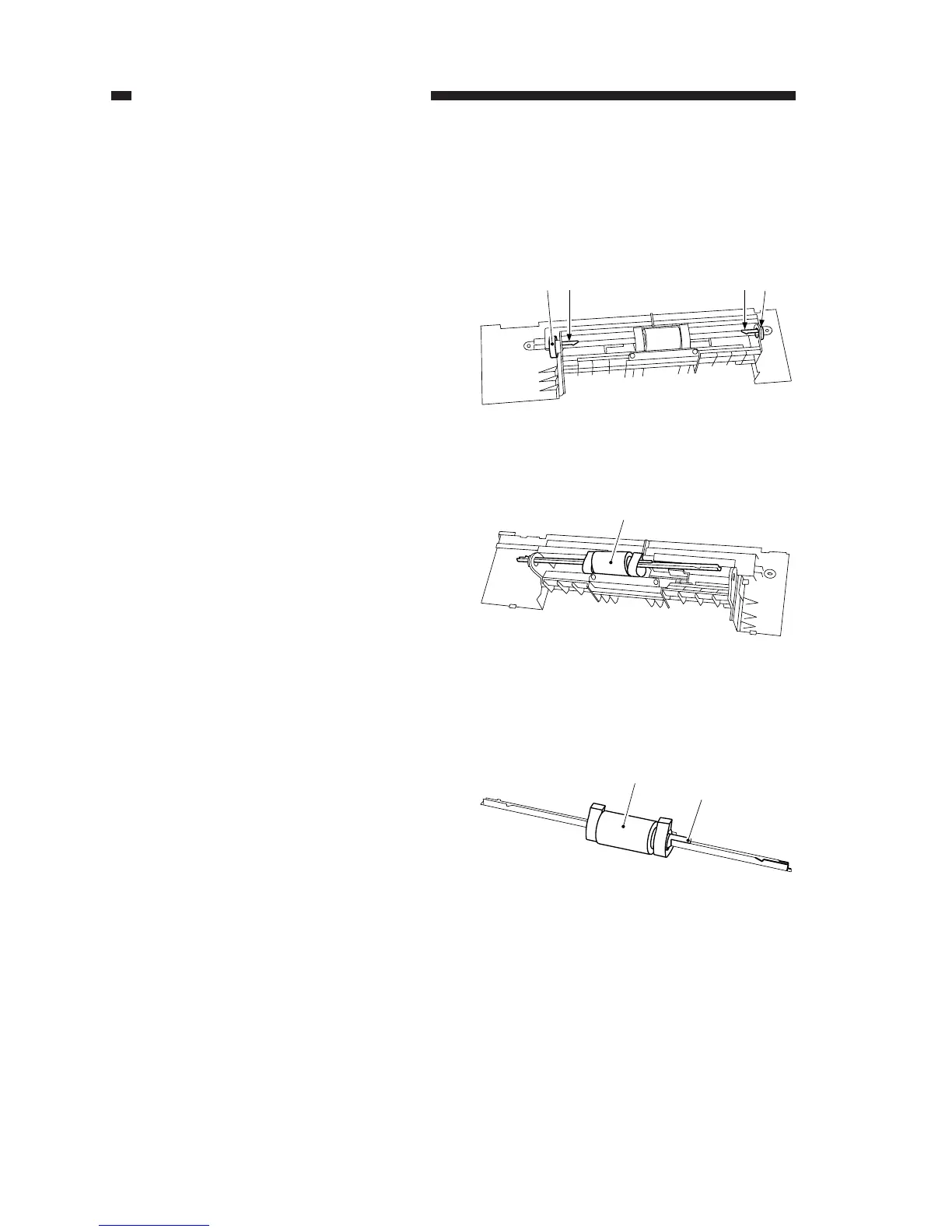

Figure 5-216
Figure 5-217
Figure 5-218
[2] [1] [1] [3]
[4]
[6]
[5]
2. Removing the Multifeeder Pickup
Roller
1) Remove the multifeeder unit.
(See 1. “Removing the Multifeeder
Unit.”)
2) Free the claw [1], and remove the gear [2]
and the bushing [3].
3) Remove the multifeeder pickup roller unit
[4].
4) While freeing the claw [5], detach the
multifeeder pickup roller [6].
