CHAPTER 8 ADF
COPYRIGHT © 1999 CANON INC. CANON NP6512/6612/7120/7130/7130F REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 8-22
3) Remove the six screws [3], and separate
the lower cover [4] from the upper cover
[5].
4) Disconnect the connector [6], and remove
the lower cover [4].

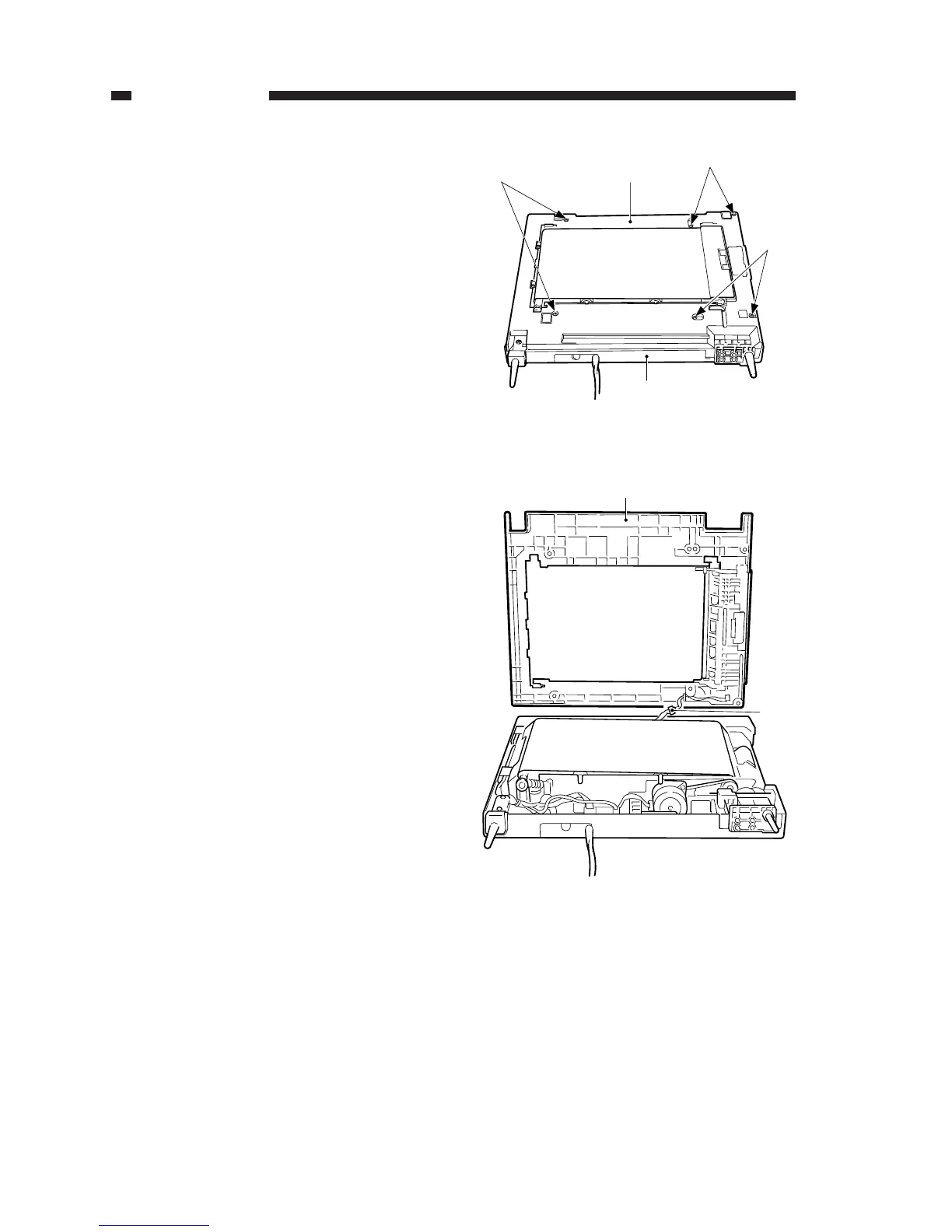

Figure 8-208
Figure 8-209
[3]
[4]
[5]
[3]
[3]
[4]
[6]
