CanyCom CMX222 - Upper Rear Cover; Lower Rear Cover; Seat Bracket

Maintenance
-50-
5

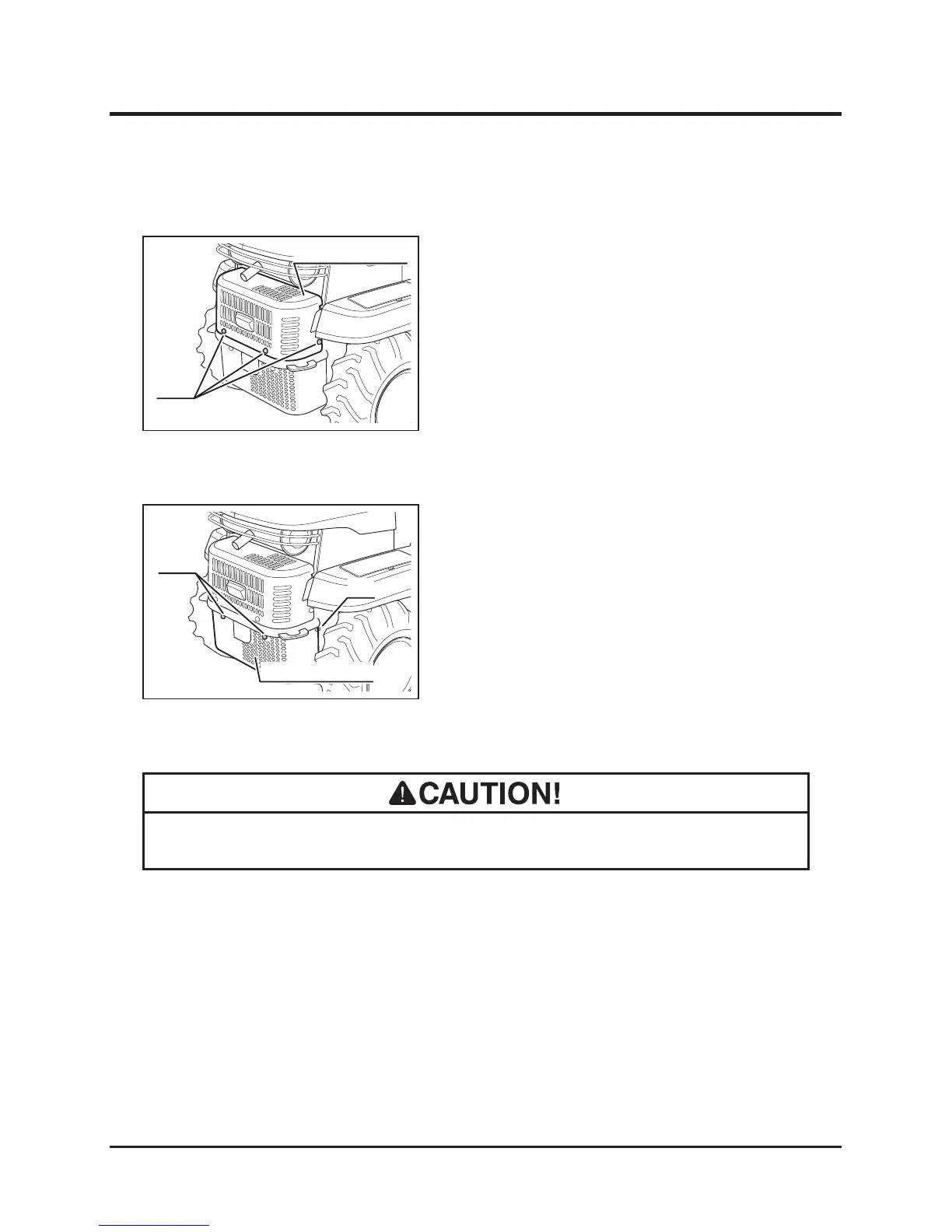

1. Unfasten 4 bolts.
2. Remove upper rear cover.
Upper Rear Cover
5321M-0505-060E
Bolts
Upper Rear Cover
1. Unfasten 2 bolts.
2. Remove lower rear cover.
3. When installing, insert pins on cover into
corresponding holes on frame, then fasten
with 2 bolts.
Seat Bracket
Lower Rear Cover
• Shift seat position to the rear end to prevent contact of seat bracket and step.
5323M-0505-020E
Bolts
Pin
Lower Rear Cover
