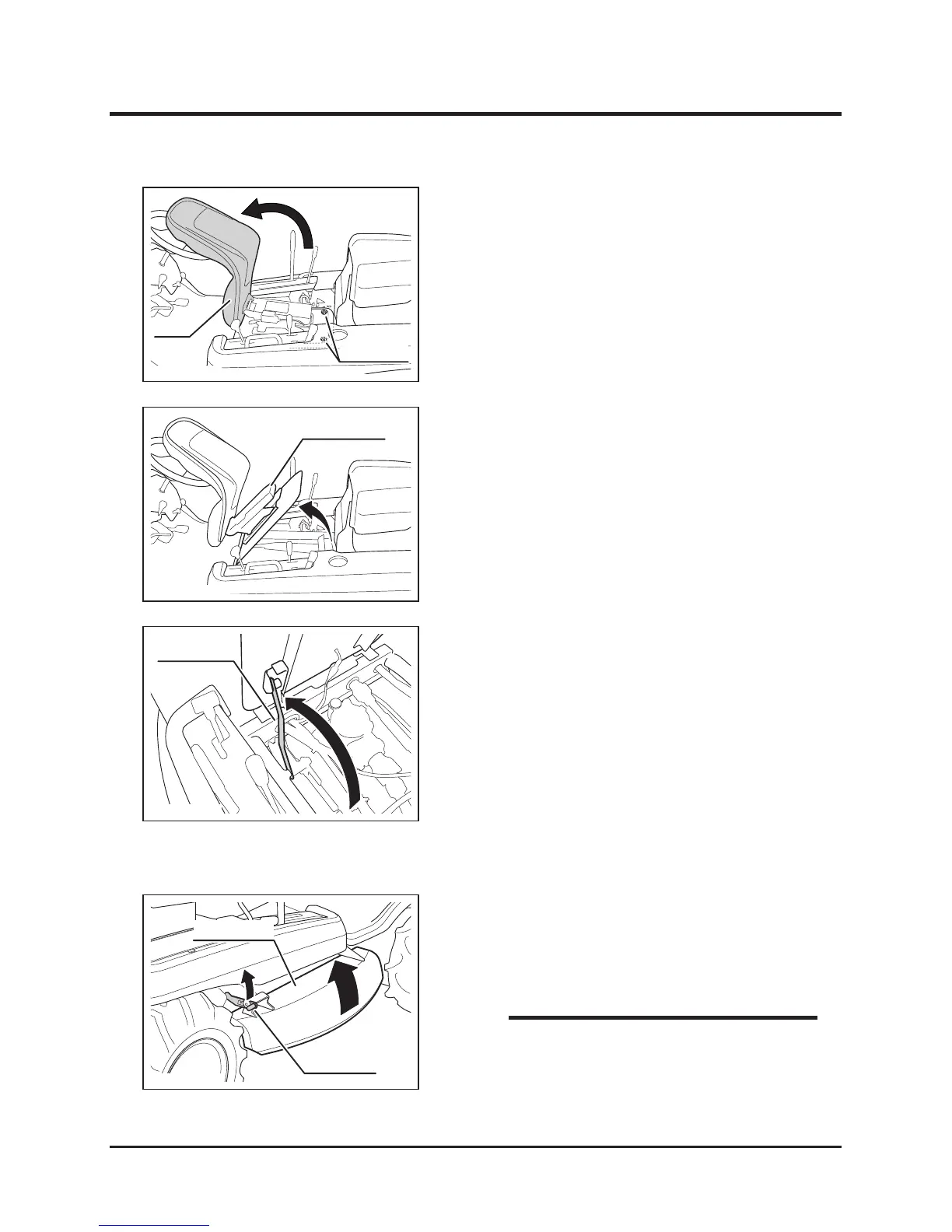

CanyCom CMX222 - Cutting Blade Shield

-51-
Maintenance 5
1. Raise seat.
2. Unfasten 2 knob nuts.
5321M-0505-080E
Seat
Knob Nuts
3. Raise seat bracket.
Cutting Blade Shield
5321M-0505-090E
Seat Bracket
4. Hold seat with safety prop.
5321M-0505-110E
Safety Prop
1. Raise lock lever.
2. Hold lock lever and raise blade shield.
3. Release lock lever to lock shield in the raised
position.
5321M-0505-100E
Blade Shield
Lock Lever
• Change cutting height less than 100mm to
fully open the cutting blade shield.
NOTE
