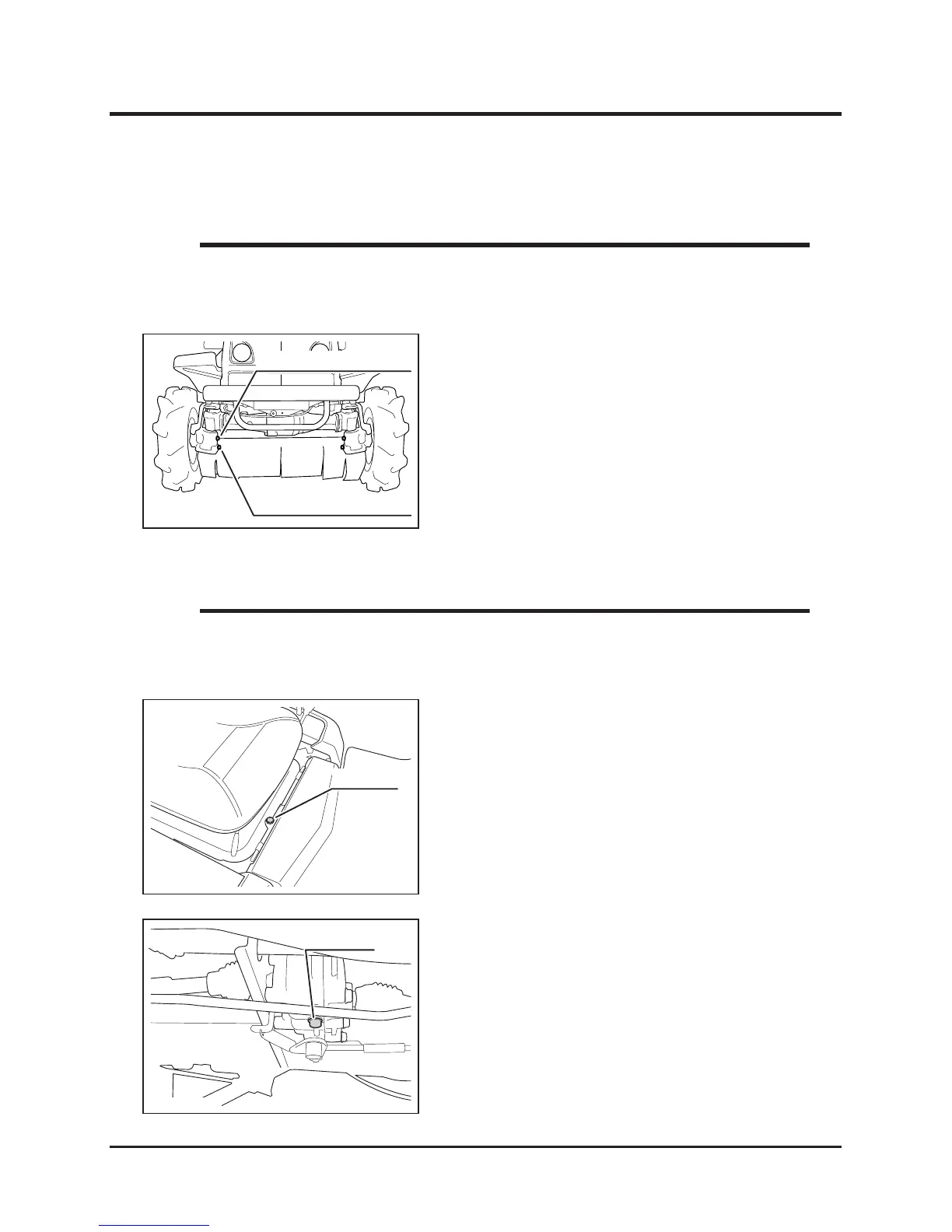

Front Knuckle Oil (CMX222 Only)
1. Park machine on a level ground.
2. Have an appropriate oil drain pan.
3. Remove front knuckle oil drain plug to drain
oil.
4. Install drain plug back in place.
5. Remove front knuckle oil ller plug.
6. Fill specied amount of oil into ller.
7. Install ller plug back in place.
5321M-0508-040E
Filler Plug (on both sides)
Drain Plug (on both sides)
• Oil to Use: Page 43.
• Oil Capacity: Page 43.
NOTE
1. Park machine on a level ground.
2. Have an appropriate oil drain pan.
3. Open seat bracket
4. Remove center gearbox oil ller plug.
5321M-0508-050E
Drain Plug
NOTE
5. Remove center gearbox oil drain plug to
drain oil.
6. Install drain plug back in place.
7. Fill specied amount of oil into ller.
8. Install ller plug back in place.
5321M-0508-140E
Filler Plug
Center Gearbox Oil (CMX222 Only)
• Oil to Use: Page 43.
• Oil Capacity: Page 43.
