• Torque for Nut B - M12: 44.1-53.9N•m
(450-550kgf•cm).
NOTE

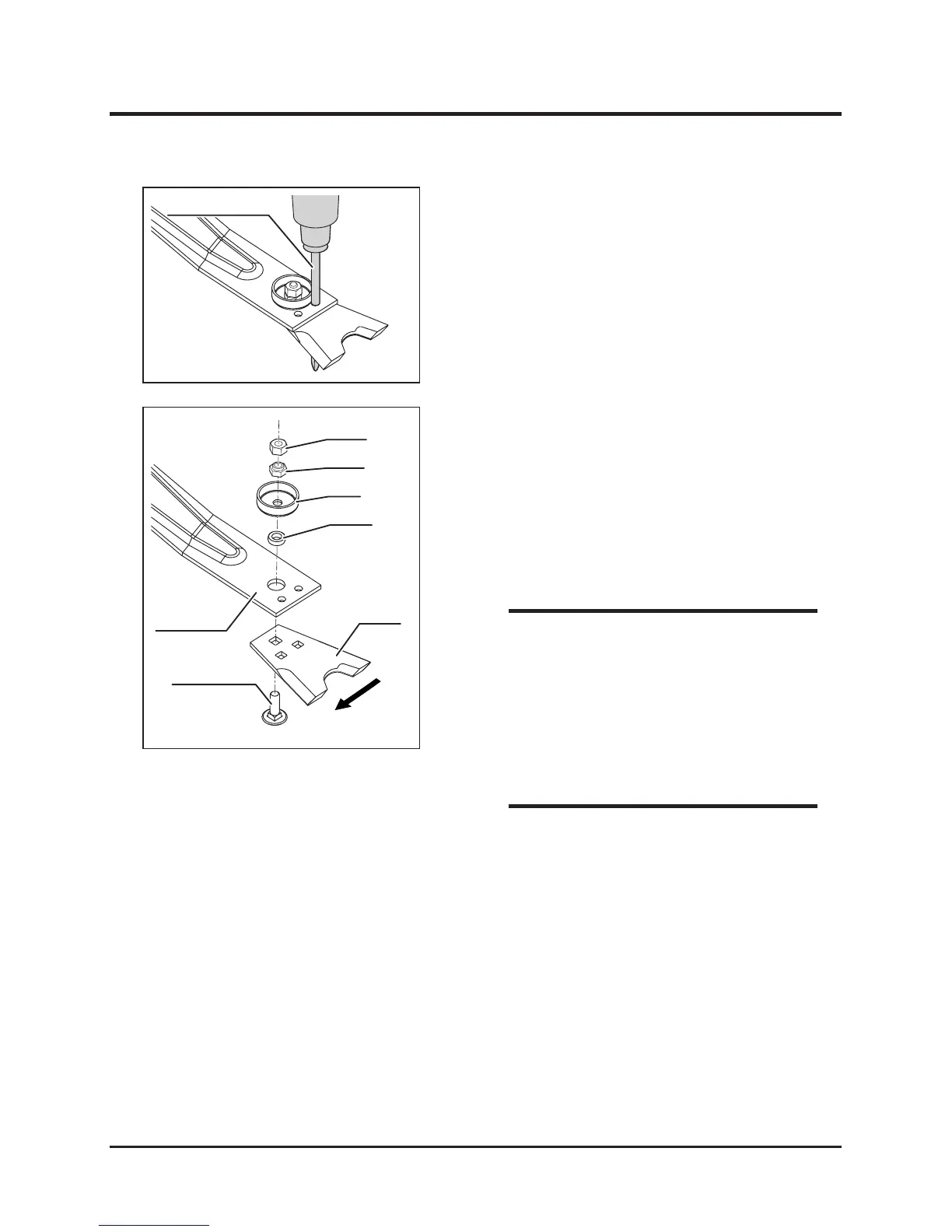

1. Open cutting blade shield.
2. Hold blade with a strong stick-like object
(such as screw driver).
3. Unfasten nut A, then nut B to remove blade.
4. Place a new or ipped blade under blade
stay. Insert carriage bolt.
5. Place collar and cap.
6. Hold blade with strong, stick-like object.
7. Thread nut B and tighten it to a specied
torque.
8. Thread nut B. Tighten it by hand. When it
cannot be turned by hand, tighten it for one
turn by a wrench.
9. Close cutting blade shield cover.
• Nut A provides sufcient locking when
installed as descrived above.
