Installation and Programming Guide 125
7. Enter the Event Range for the selected Category.
For example, if you want to select Areas 1-4 then set the Event range Start=1 and
End=4.
8. Select Event 2 logic and repeat for the remaining events.

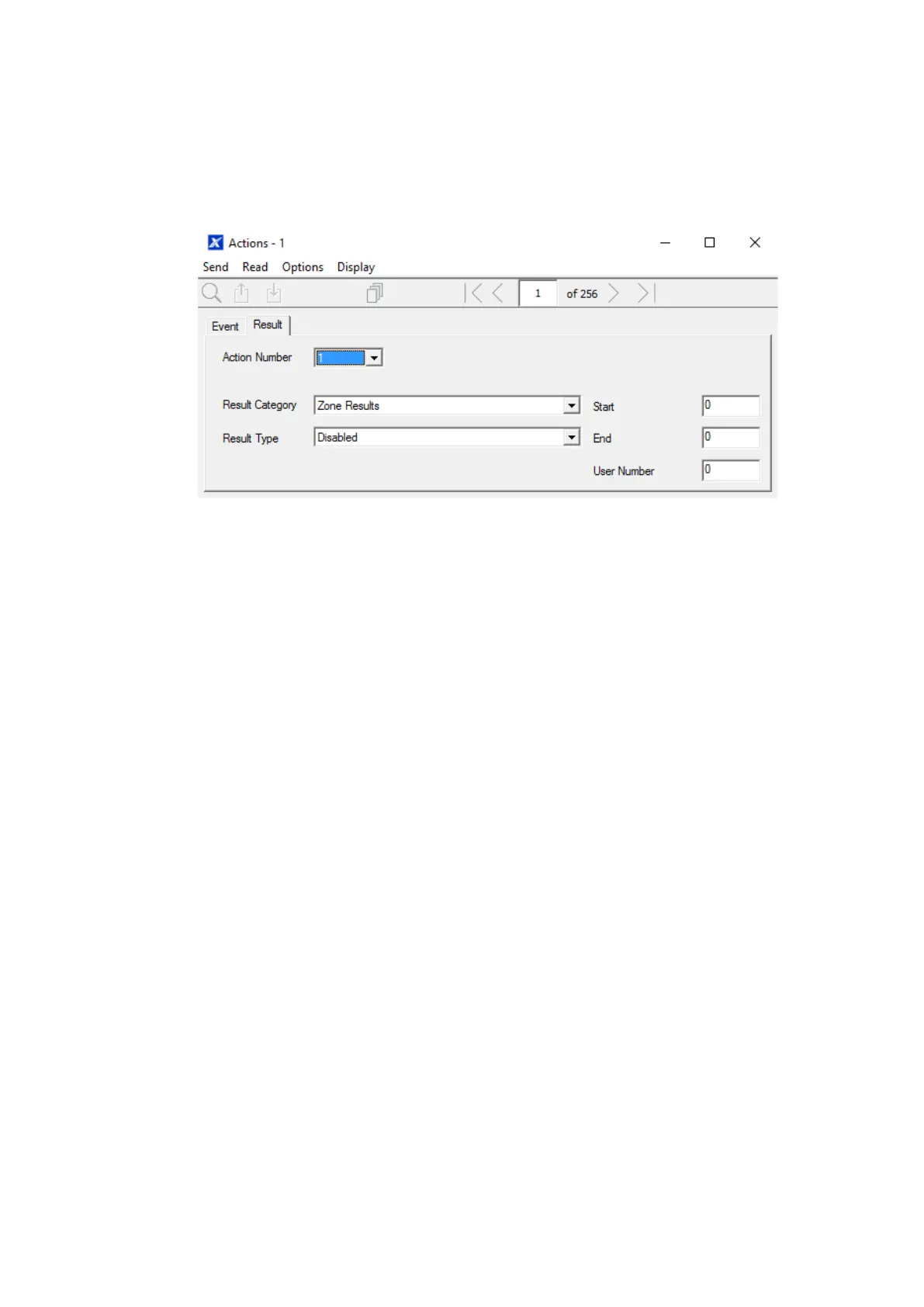

9. If you want to program an action result, click the Result tab.
10. Select the Category, Type, Start and End Range.
11. Test the Action by satisfying the Event Logic and checking the desired response.
Next
• Program the device you want to monitor the Action if needed.
• If you want to control an Output, go to that Output and program it to follow the Action.
• If you want a user or device to have access to the action, then program Action Groups
and Permissions.
Programming Instructions for Action Groups
Goal
Create a list of actions a user or device has access to.
Pre-conditions
Program the actions you want to use.
Notes
See Aritech Reliance XR Reference Guide for more details on Actions.
Action Groups can allow you to create a convenient menu for a user to trigger specific
Actions from a NXX-1820- .
Permissions control what actions a User or Device has access to.
Both the User AND Device need to have access to the desired Action for it to be displayed
on a NXX-1820- screen.
