CASE CONSTRUCTION 1107EX - Hydraulic oil level - Check

7-MAINTENANCE
Hydraulicoillevel-Check
1.Parkthemachineonalevelground
2.Releaseanypossibleresidualpressurefromthehy-
draulicsystembymovingthecontrolleversinalldirec-
tions.

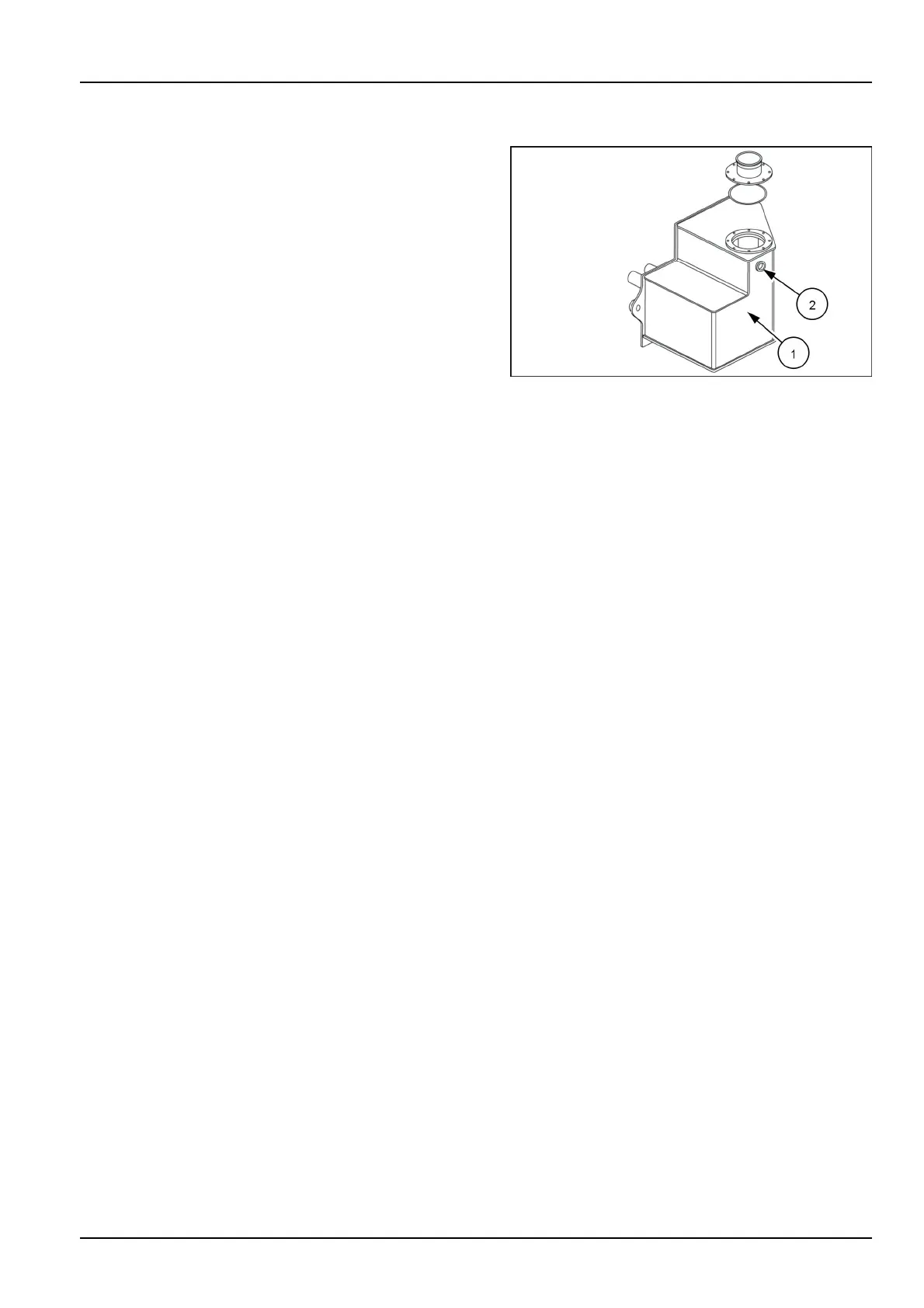

3.Checkthehydraulicoillevelinthetank(1)bymeans
ofthelevelgauge(2)afterwaitingfortheoiltoreach
theambienttemperature.
4.Thehydraulicoillevelmustreachatthecentreofthe
gauge(2).
5.Ifnecessary,topupwiththespeciedoil.See7-1.
NOTE:Evenwhenitslevelisinsufcient,asmallquantity
ofhydraulicoilremainsinthelowerpartofthegauge.This
doesnotmeanthatthelevelissufcient.
