CASE CONSTRUCTION 1107EX - Anti Vibration Mount (AVM) - Check

7-MAINTENANCE
AntiVibrationMount(AVM)-Check
1.CheckthetightnessofalltheAntiVibrationMount
(AVM)screws.T orquetheAVMscrewsifrequired.
TheAVMsarelocatedontheenginemounting,op-
erator’splatformmounting,andtherollermounting.
Periodicallychecktheantivibrationmountandmake
surethattherearenocracksinAVM.Measurecrack
depthwithastraightedge.Ifdepthofcrackexceeds
15.0mm(0.6in),replacerubberpads.
RollermountingAVM

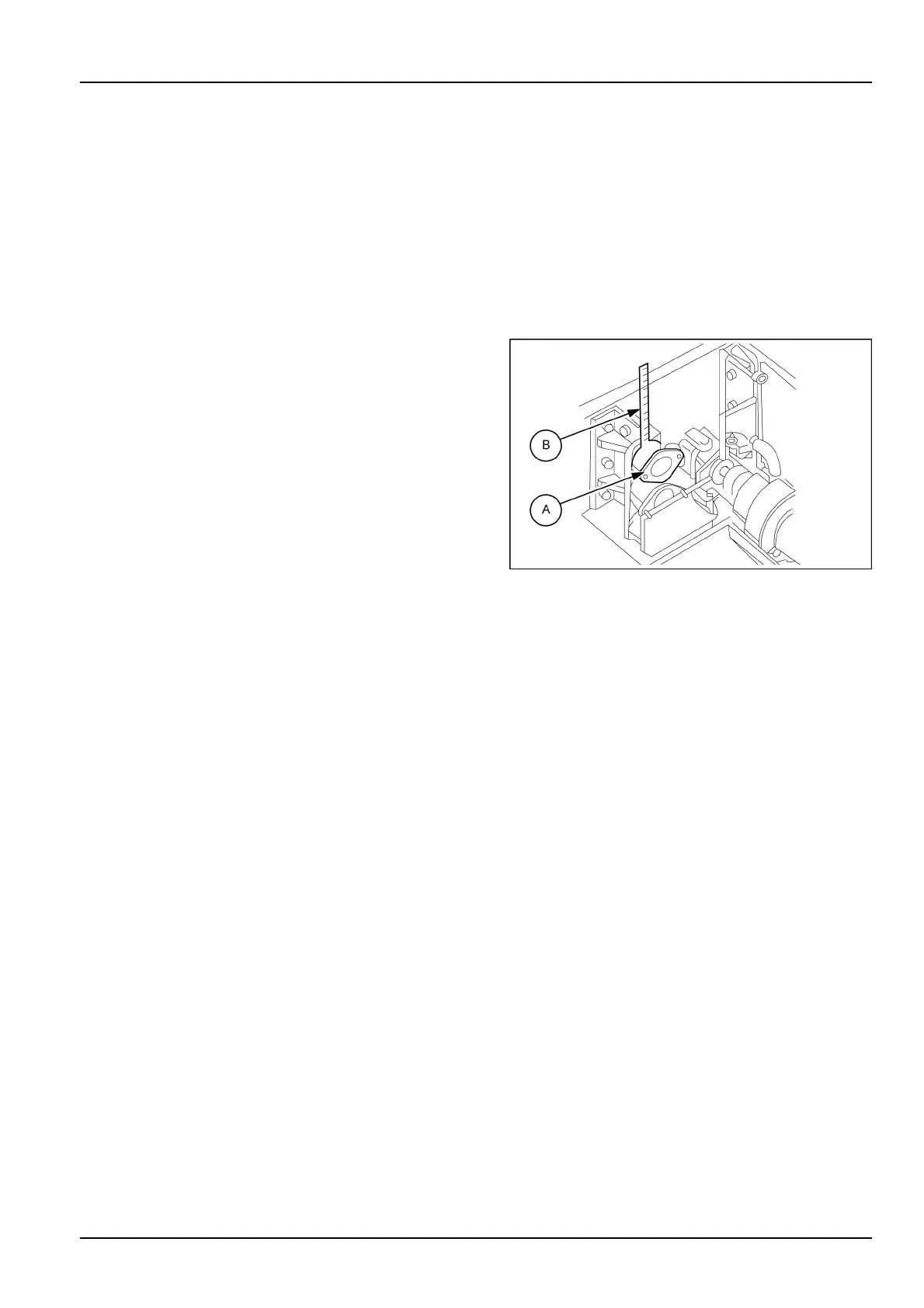

2.Checkrubberpads(A)forcracksanddistortion.Mea-
surecrackdepthwithastraightedge(B).Ifdepthofthe
crackexceeds15.0mm(0.6in),replacerubberpads
(A).Duringpadsassemblyitneedstobepre-loadedby
4.0mm(0.2in)bylooseningthechecknutandloosen-
ingthescrew.
PTIL14COM0058AA1
7-15
