3-CONTROLSANDINSTRUMENTS
Warningindicators,alarms,andinstruments-Controlidentication

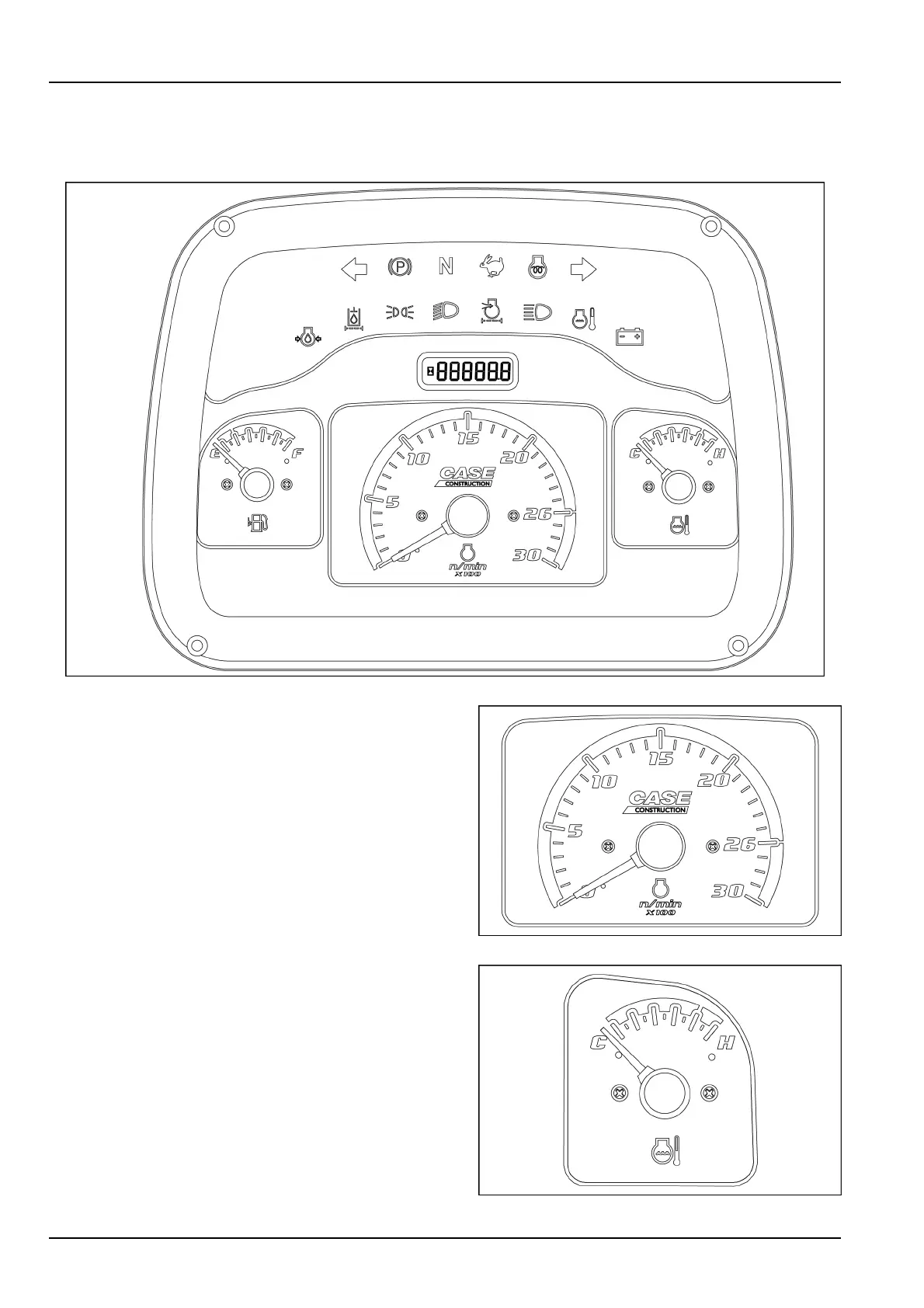

Indicationsincluster
PTIL15COM2149FA1
Tachometer
Eachsubdivisionofthegraduatedscaleonthetachome-
terrepresents100RPM,thereforewiththeneedleindi-
cating’20’theengineisrunningat100RPM.
PTIL17COM1116AA2
Enginecoolanttemperaturegauge
Enginecoolanttemperaturegaugeorwatertemperature
gaugeindicatesthewatertemperature.Itisrecom-
mendedthatthewatertemperaturegaugeneedleshould
beinagreenzoneduringoperation.IftheTemperature
goesbeyondgreenzone,stoptheengineandinvesti-
gate.
PTIL17COM1115AA3
3-12
