3-CONTROLSANDINSTRUMENTS
Suspensionseat(withROPS)
Forward/Reverse
Handleislocatedonthefrontsideoftheseatlifttheseat
adjustmenthandle(1)tomovetheseatforwardorre-
verse.Releasetheseatadjustmenthandle(1)anden-
suretheseatislockedinposition.

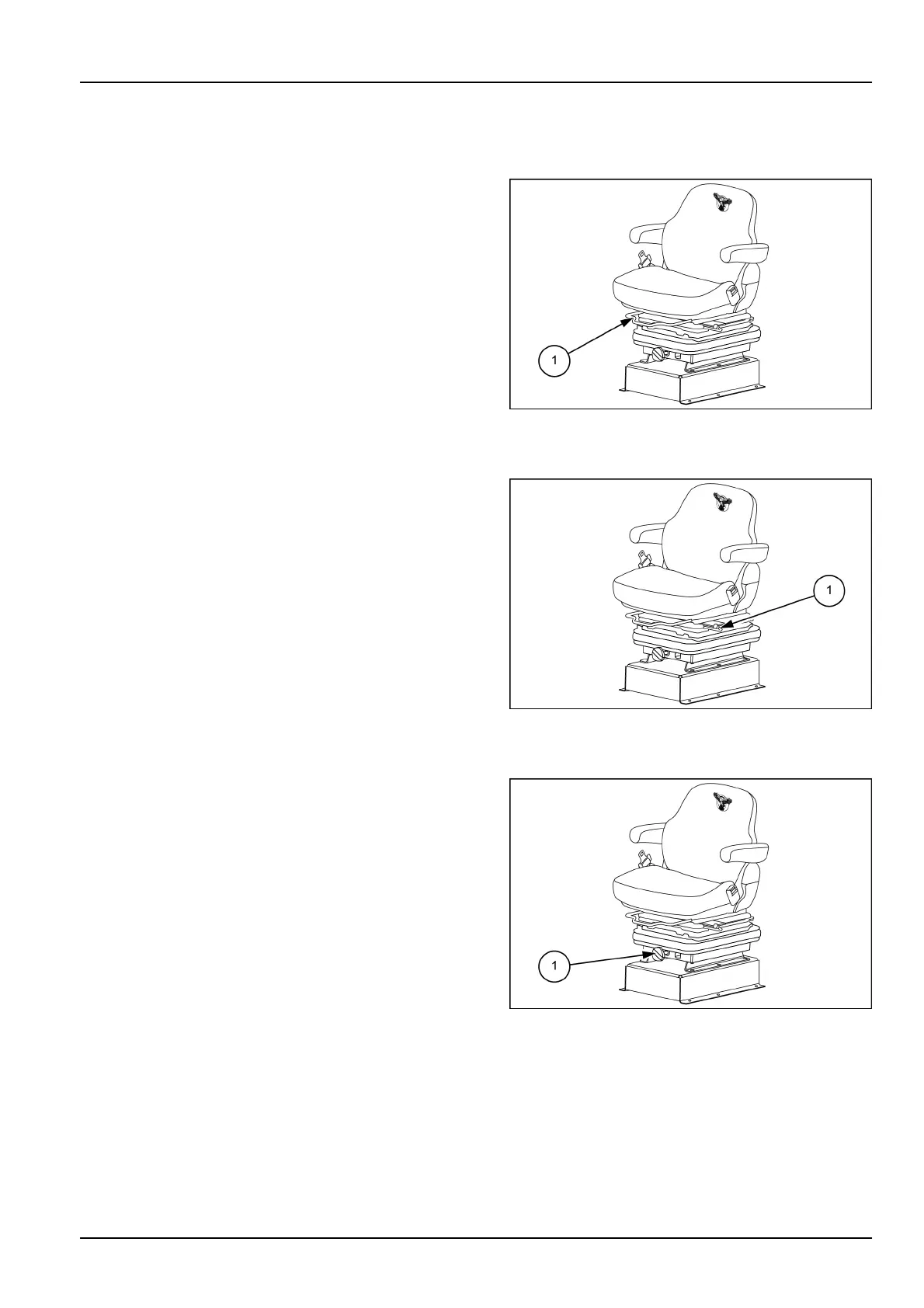

PTIL16TLB0390AB4
Rotatetheseat
Leverislocatedontheleft-handsideoftheseat.Liftthe
lever(1)andhold.Turntheseatto90°onright-handside
andreleasethelever(1)tolock.
NOTE:MakesureFNRleverisinneutralpositionwhile
rotatingtheseat..Theoperatorseatwillonlyrotate90°
onright-handside.
PTIL16TLB0392AB5
Height
Usethehandcrankontheknob(1).Turntheknob(1)
clockwisetoincreasetheseatheightandsuspensionrm-
ness.Turncounter-clockwisetodecreasetheseatheight
andsuspensionrmness.
PTIL16TLB0393AB6
