5-TRANSPORTOPERATIONS
WithoutROPS
Loadthecompactorontoatrailer:
1.Parkonalevelsurface.
2.Fastentheseatbelt,shiftforwardreverselever(FNR)
geartoforwardandslowlydrivethemachineontothe
trailer.
3.Shutdowntheengineandremovethekey.
4.Putablockatthefrontandrearofeachtirewhichis
providedwiththemachine.

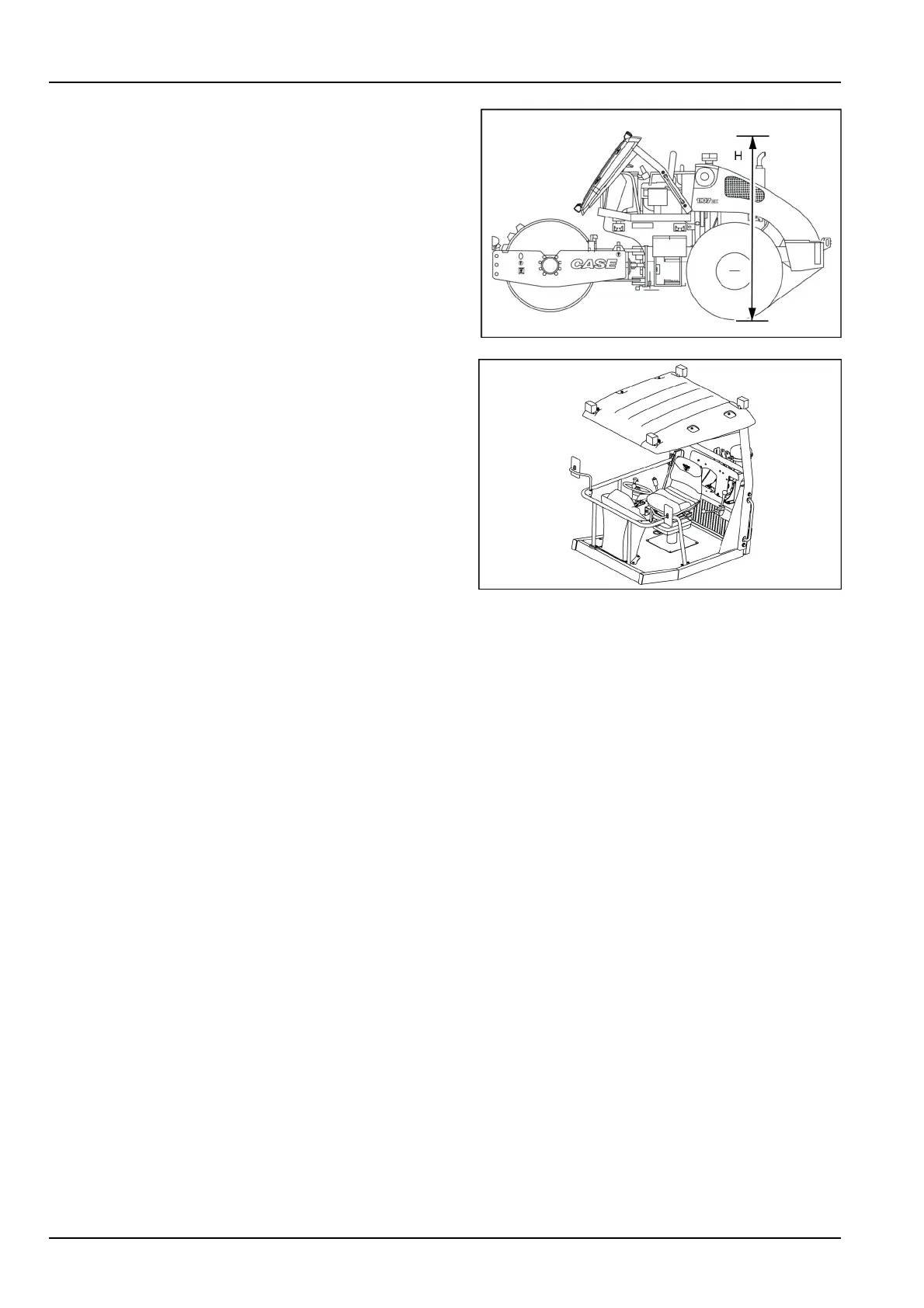

5.Lowerthecanopyasshown.Theheightofthema-
chinewithloweredcanopyis3.00m(118.11in).
6.Afteryouhavedrivensomedistance,stopthetruck
andtrailerandcheckyourload.Makesurethechains
arestilltightandmachinehasnotmoved.
7.Vandalguardtoberemovedfrommachine(eitheron
frontconsoleorrearcoverofoperator)beforestarting
theunit.
8.MachinepartsmaygetdamagedifoperatedwithVan-
dalguardininstalledcondition.
PTIL17TLB0051AA3
PTIL16TLB0379AB4
Unloadthesoilcompactorfromthetrailer:
1.Removethechainsandblocksfromthemachine.
2.Checktheengineoil,HydraulicoilandBattery
3.Fastentheseatbelt.
4.Starttheengine.
5.Releasetheparkingbrake.
6.Shiftforwardreverselever(FNR)geartoforwardand
drivethemachine.
