CASE CONSTRUCTION CX37C - Page 114

4-OPERATINGINSTRUCTIONS
WARNING
Avoidinjury!
Inspecttheworkareaorjobsitetomakesure
thatmachineoperationcanbedonesafely.
Conrmthattheleveroperationisthesame
asindicatedonthecontrolpatternlabels.If
not,immediatelychangethemachinecontrol
patternorthelabeldisplayedtomatchthema-
chinecontrolpattern.
Failuretocomplycouldresultindeathorse-
riousinjury.
W1339A

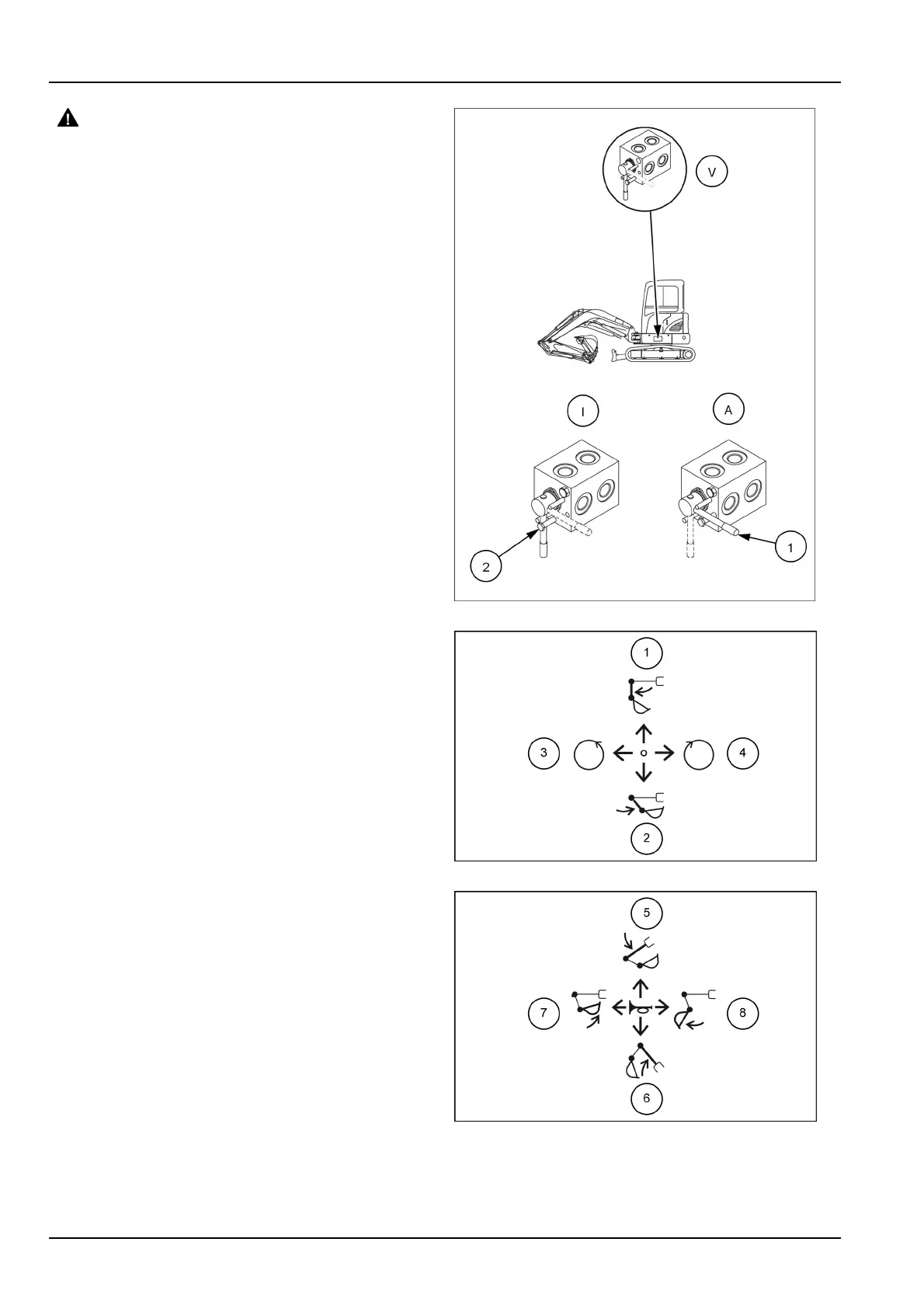

Themachinecontrolpatterncaneasilybechangedto
the“ISO”type(I)orthe“SAE”type(A)bychangingthe
positionofthelever-pattern(1)locatedonthepattern
changevalve(V).
Tochangethepattern,performthefollowingoperations.
1.Loosenthebolt(2).
2.Rotatethelever(1)fromthe“ISO”typepattern(I)to
the“SAE”typepattern(A)orviceversa.
3.Tightenthebolt(2)inordertosecurethelever(1).
SMIL16MEX0456BB4
Pattern:ISOtype
Left–handcontrollevercontrolfunction
1.Armout
2.Armin
3.Swingleft-hand
4.Swingright-hand
SMIL16MEX3075AB5
Right–handcontrollevercontrolfunction
5.Boomlowering
6.Boomraising
7.Bucketin
8.Bucketout
SMIL16MEX3076AB6
4-14
