1-GENERALINFORMATION

Productidentication

Yourmachineisahydraulicexcavator.Itconsistsofanundercarriagettedwithtracksandaswingbearingwhich

supportstheupper-structureframe.Theupper-structureframesupportstheattachmentatthefrontendofthema-

chine,plustheengine,hydraulicsandthecab/canopy.Whentheoperatorworksthecontrols,theengine-drivenpump

delivershydraulicuidtothecontrolvalves.Thecontrolvalvesdistributethehydraulicuidtothevariouscylinders

andhydraulicmotorsemployed.Acoolingsystemmaintainsthehydraulicuidatnormaloperatingtemperature.

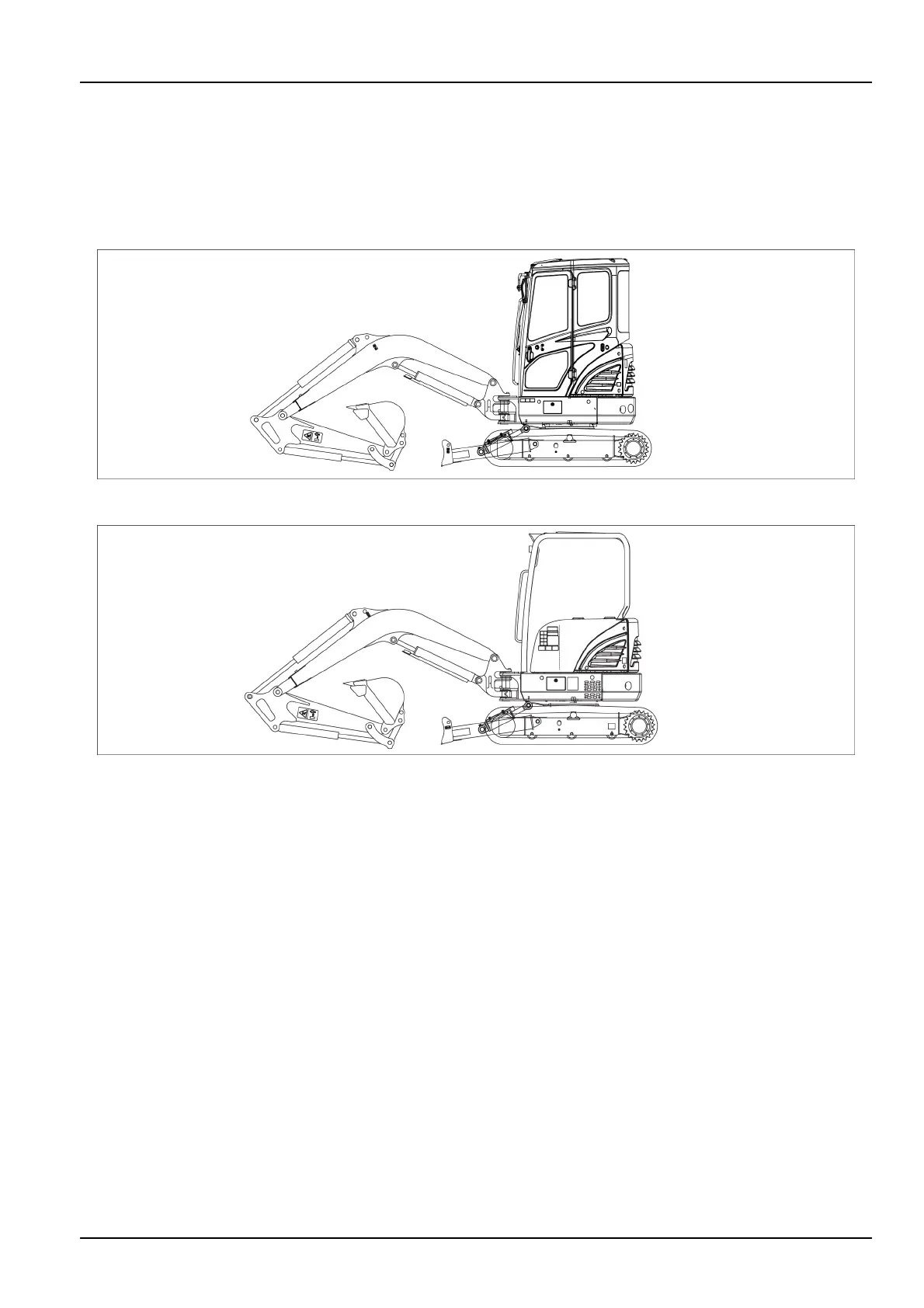

SMIL16MEX0363EA1

Cabversion

SMIL16MEX0629EA2

Canopyversion

Whenorderingparts,obtaininginformation,orseekingassistance,alwayssupplyyourCASECONSTRUCTION

DealerwiththetypeandProductIdenticationNumber(PIN)ofyourmachineoraccessories.

Writethefollowinginthespacesbelow:

•

MachineType

•

MachinePIN

•

Machineyearofmanufacture

•

Serialnumbersofhydraulicandmechanicalcomponents

1-3
