CASE CONSTRUCTION CX37C - Right-hand side controls

3-CONTROLSANDINSTRUMENTS
Right-handsidecontrols
Right-handsidecontrols

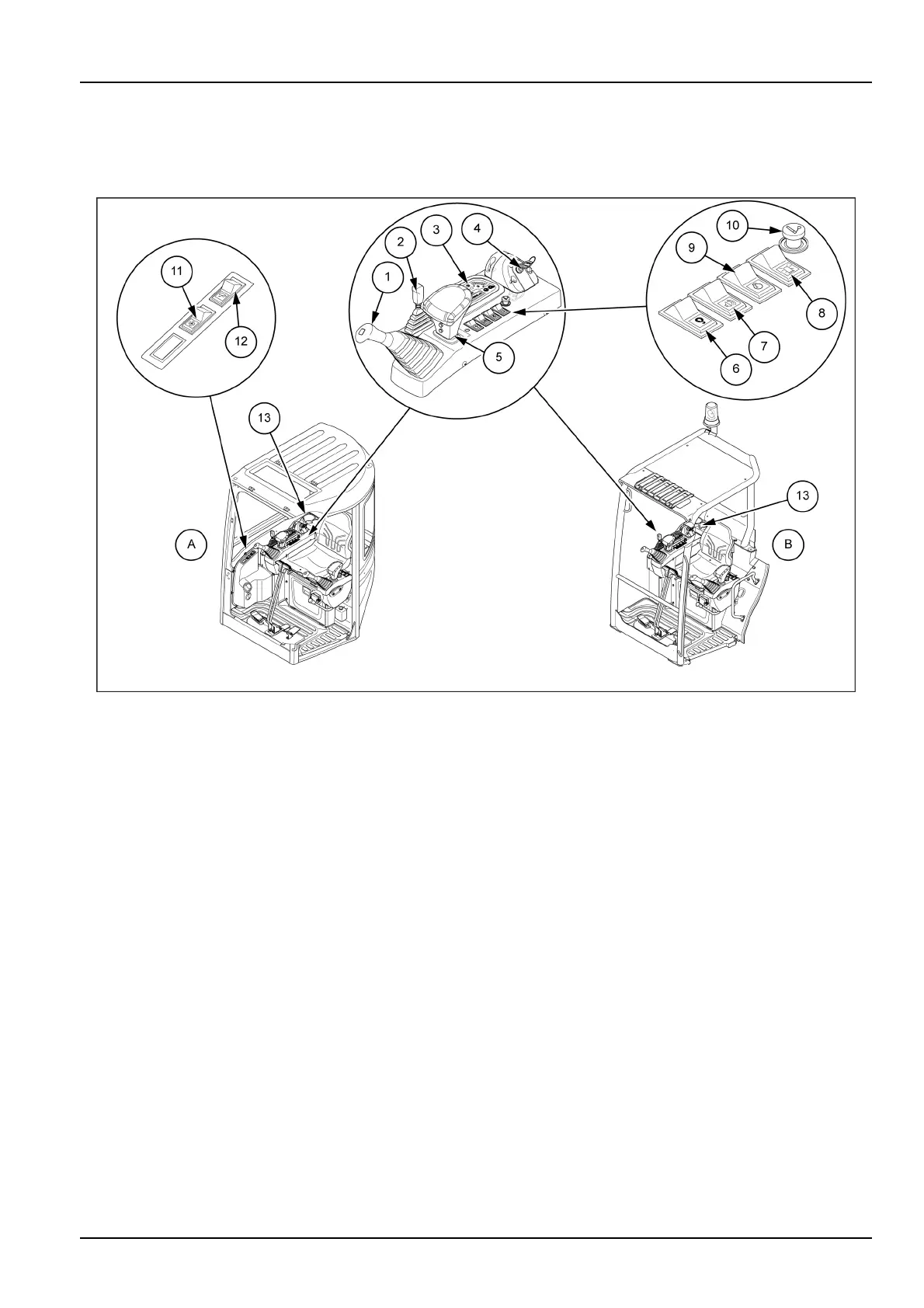

SMIL16MEX1478FB1
(A)Cabversion
(B)Canopyversion
(1)Right–handcontrollever(refertopage3-6)andhorn
push–button.Pressandmaintainpressedthepush-but-
tontoactivatethehorn.
(2)Dozerbladecontrollever(refertopage3-22)
(3)Instrumentcluster(refertopage3-23)
(4)Starterswitch
(5)Armrest
(6)Overloadwarningswitch(optional)
(7)Travelalarmswitch(optional)
(8)Rotatingbeacon(optional)(refertopage9-12)
(9)Autoidle
(10)Cigarettelighterand12Vpowersupplysocket:the
deviceisactivewiththestarterkeyinONposition,or
whiletheengineisrunning.
Tooperatethecigarettelighter,pushitdowntoengage
itsheatingposition.
NOTICE:ifyoucontinuouslypushinthecigarettelighter,
youcancauseseriousdamagetothedeviceandthema-
chineelectricalsystem.
NOTICE:connectonly12V,120Wdevicestothesocket.
Connectingdevicesfunctioningatdifferentvoltagecan
causedamagestothedeviceitselfandtotheelectrical
system.
(11)Heaterswitch(cabversiononly)(refertopage3-30)
(12)Washer/wiperswitch(cabversiononly)
(13)Beveragecupholder
3-19
