3-CONTROLSANDINSTRUMENTS

Overheadcontrols

Cabinternallighting

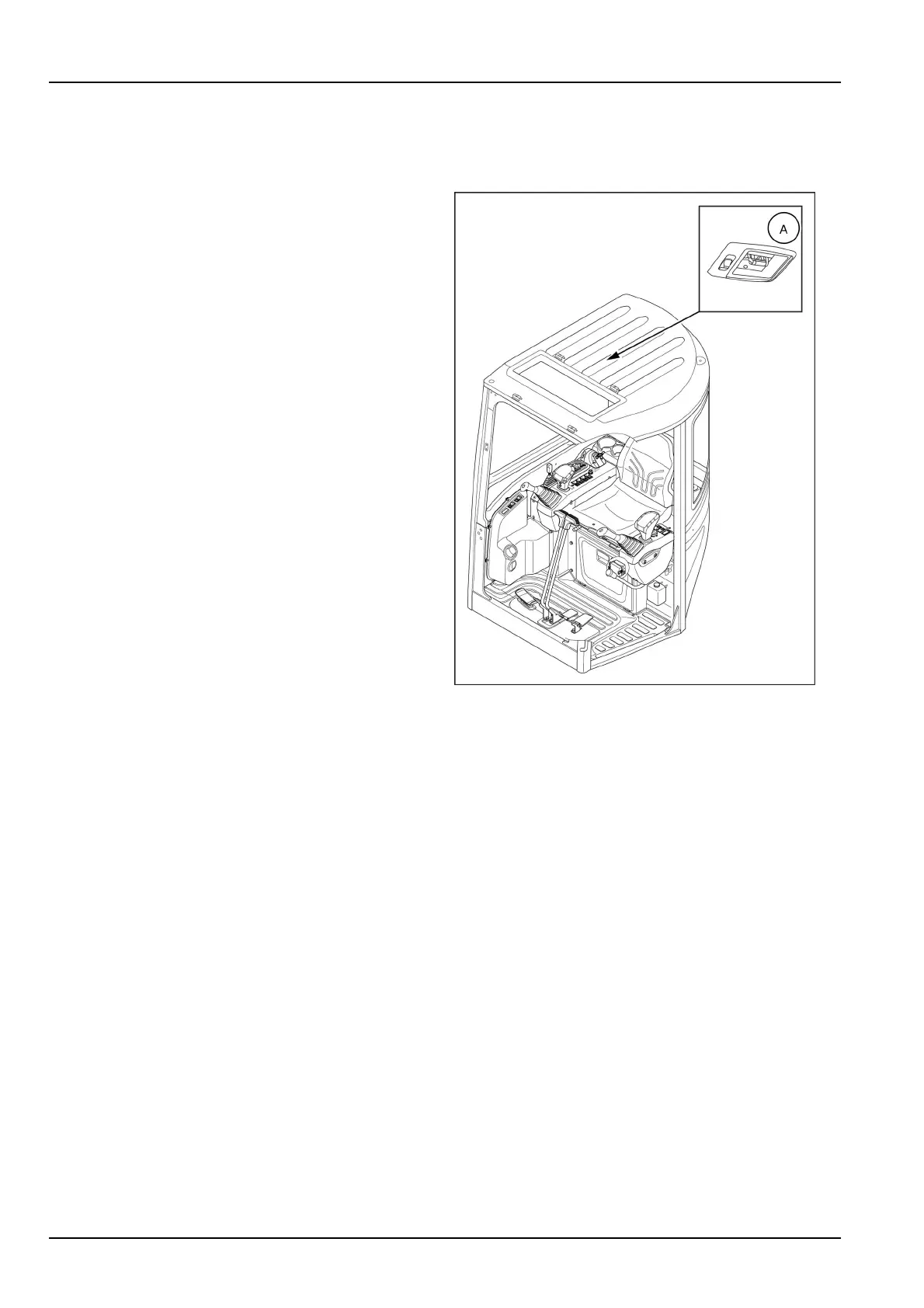

Theroomlight(A)canturnONandOFFasyouopenand

closethedoor.

Theroomlightselectionswitchisequippedtoselect

eitheroneofthefollowingstatus:

•

OFF:thelightisturnedoffalways.

•

ON:thelightisturnedonalways.

NOTICE:makesurethatthecabinternallightingisturned

offafterusingit.Leavingitturnedonmaydrainoutthe

battery.

SMIL16MEX2742BA1

3-32
