6-MAINTENANCE

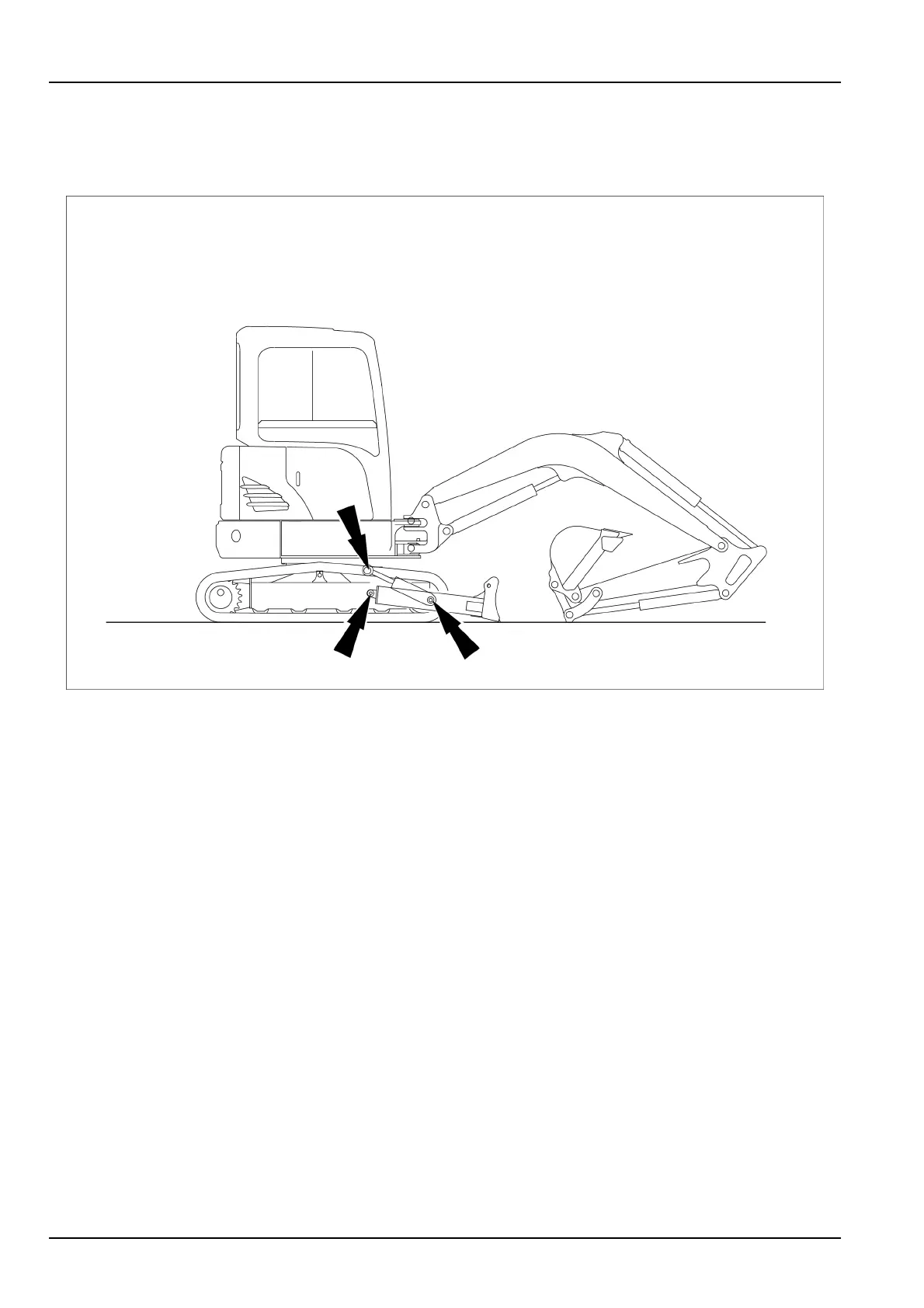

Greasepoints(Blade)

Greasethebladeevery50h.

Lubricant:CASEAKCELAMOLYGREASE

SMIL16MEX0420FA1

Dozerbladeconnectionpin:twogreasettings

Dozerbladecylinderpin:twogreasettings

NOTICE:ifyouoperatethemachineinwaterormud,you

mustlubricatethedozerbladeconnectionpinandthe

dozerbladecylinderpinevery10h.

6-26
