1-GENERALINFORMATION

Machinecomponents

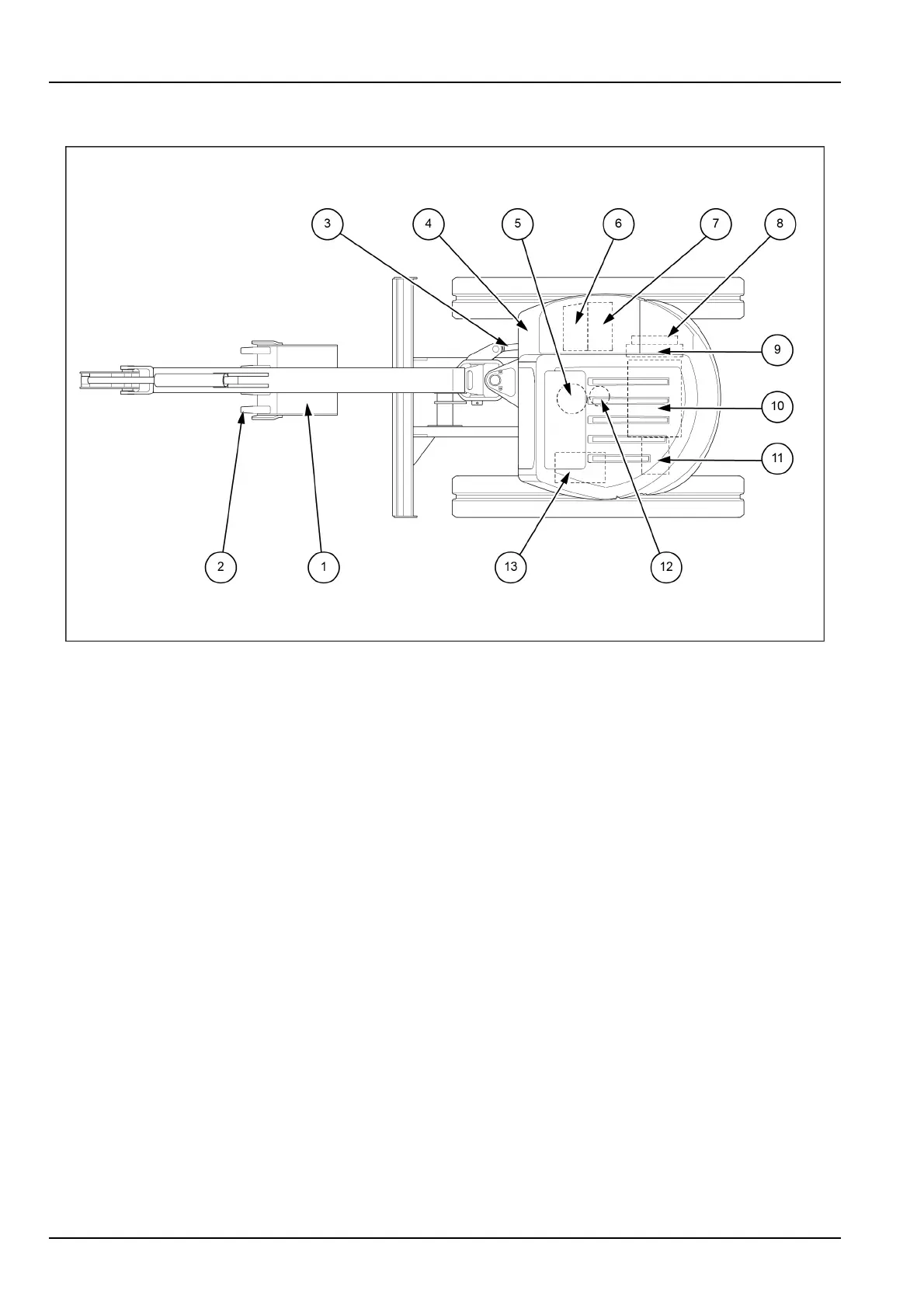

SMIL16MEX1477FB1

1.Bucket8.

Oilcooler

2.Buckettooth9.Radiator

Boomswingcylinder

10.

Engine

4.Toolbox11.

Mainpump

Swingmotor

12.

Hydrauliccentraljoint

6.Fueltank13.Maincontrolvalve

Hydraulicoiltank

1-8
