6-MAINTENANCE

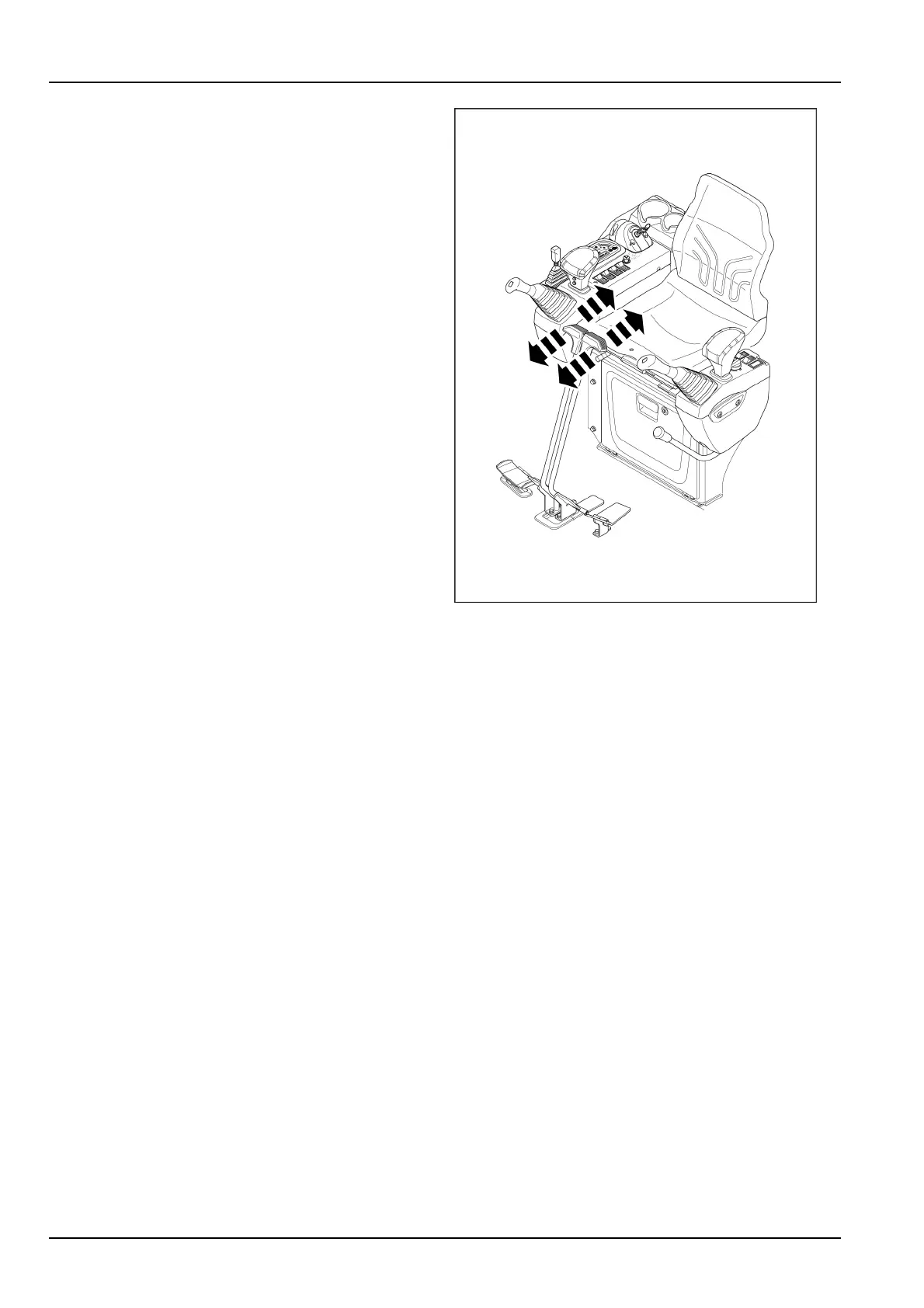

4.Operatethetravelleversfromfronttorearadozen

timesapproximately.

NOTE:thisproceduredoesnotcompletelyreleasethe

pressure,sowhenworkingonthehydraulicsystem,

loosentheconnectionsslowlyanddonotstandinthe

directionwheretheoildrainsout.

SMIL16MEX1487BB3

6-12
