2-SAFETYINFORMATION

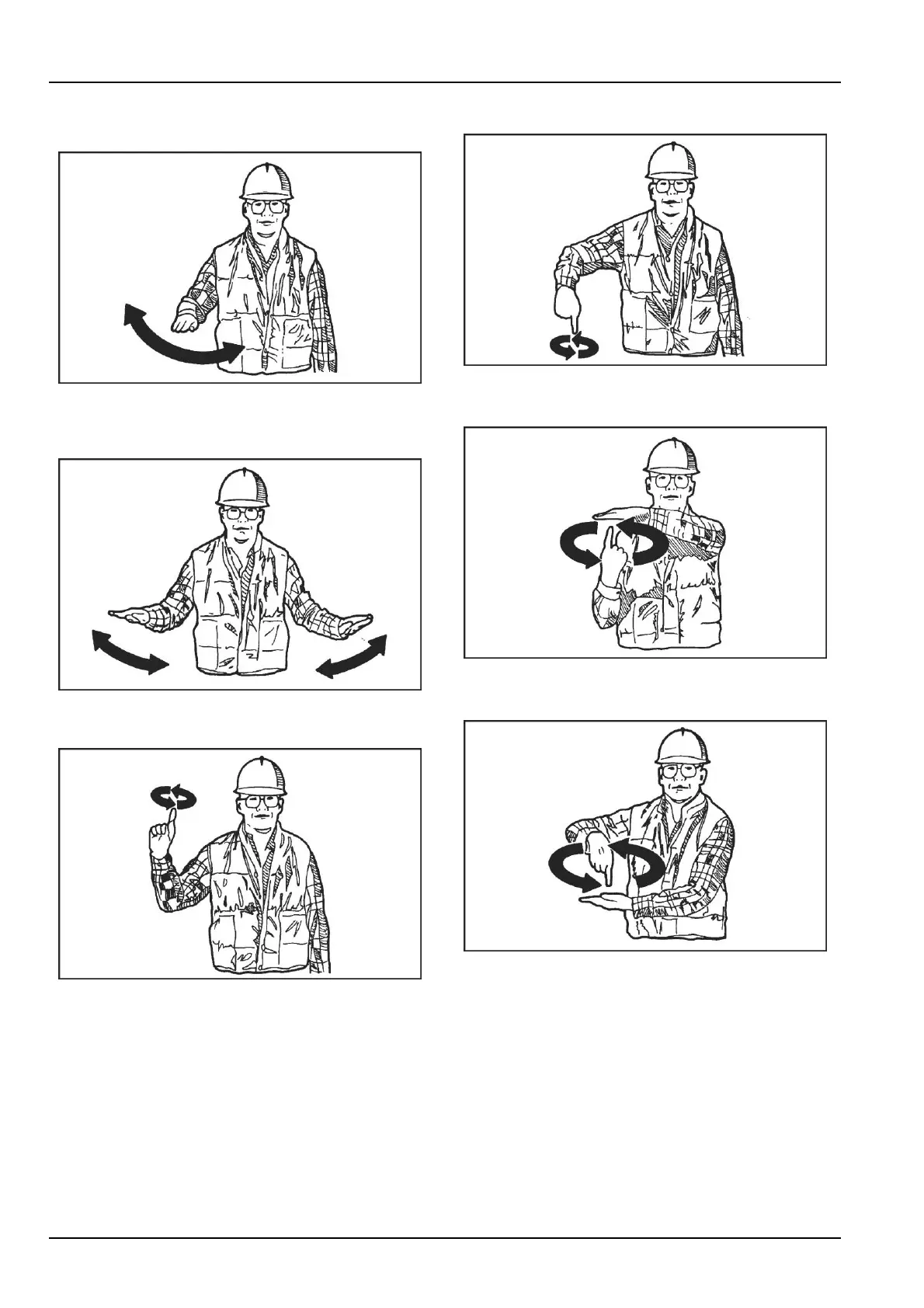

Stop

Waveonehandbackandforth.

PDE0005ATBP17

Emergencystop

Wavehandsbackandforth.

PDE0005TBP18

Raiseloadortool

PDE0006ATBP19

Lowerloadortool

PDE0006TBP110

Slowlyraisetheloadortool

PDE0007ATBP111

Slowlylowertheloadortool

PDE0007TBP112

2-14
