2-SAFETYINFORMATION
(20)Machinecontrolpattern
WARNING
Unexpectedmachinemovement!
Pilotcontrolshavetwodifferentbackhoecon-
trolspatterns;beforeoperatingthemachine,
checkwhichcontrolfunctionisactive.
Failuretocomplycouldresultindeathorse-
riousinjury.
W0185A
Themachinecontrolpatterncaneasilybechangedtothe
"ISOtype"ortothe"SAEtype"bychangingtheposition
ofthelever-pattern.
Howtouse:
1.Loosenthebolt(1)or(2).
2.Movethelevertothe“ISO”or“SAE”position.
3.Aftersettingthepattern,tightenthebolttosecurethe
lever.
NOTE:tightenthebolt(1)forthe“ISO”pattern.Tighten
thebolt(2)forthe“SAE”pattern.

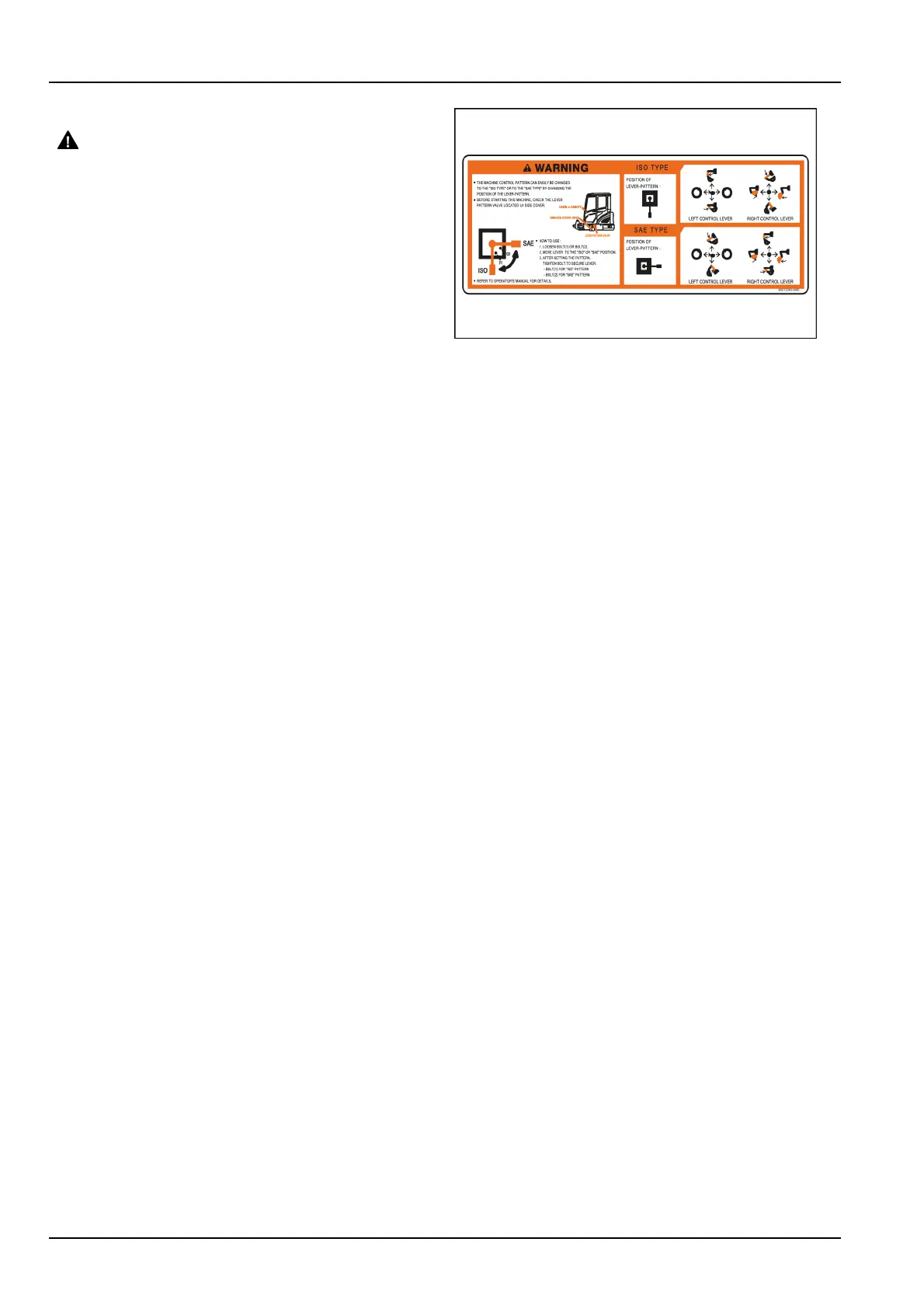

Location:thissignislocatedontheleft-handsidedoorof
thecab/canopy.
Quantity:1
Partnumber:48019340
Thissignshowsthelocationwhereaslingisattachedto
handletheexcavatorandthecouplinglocationwhenthe
machinehastobetransportedonatrailer.
SMIL16MEX3175AA24
