3-CONTROLSANDINSTRUMENTS

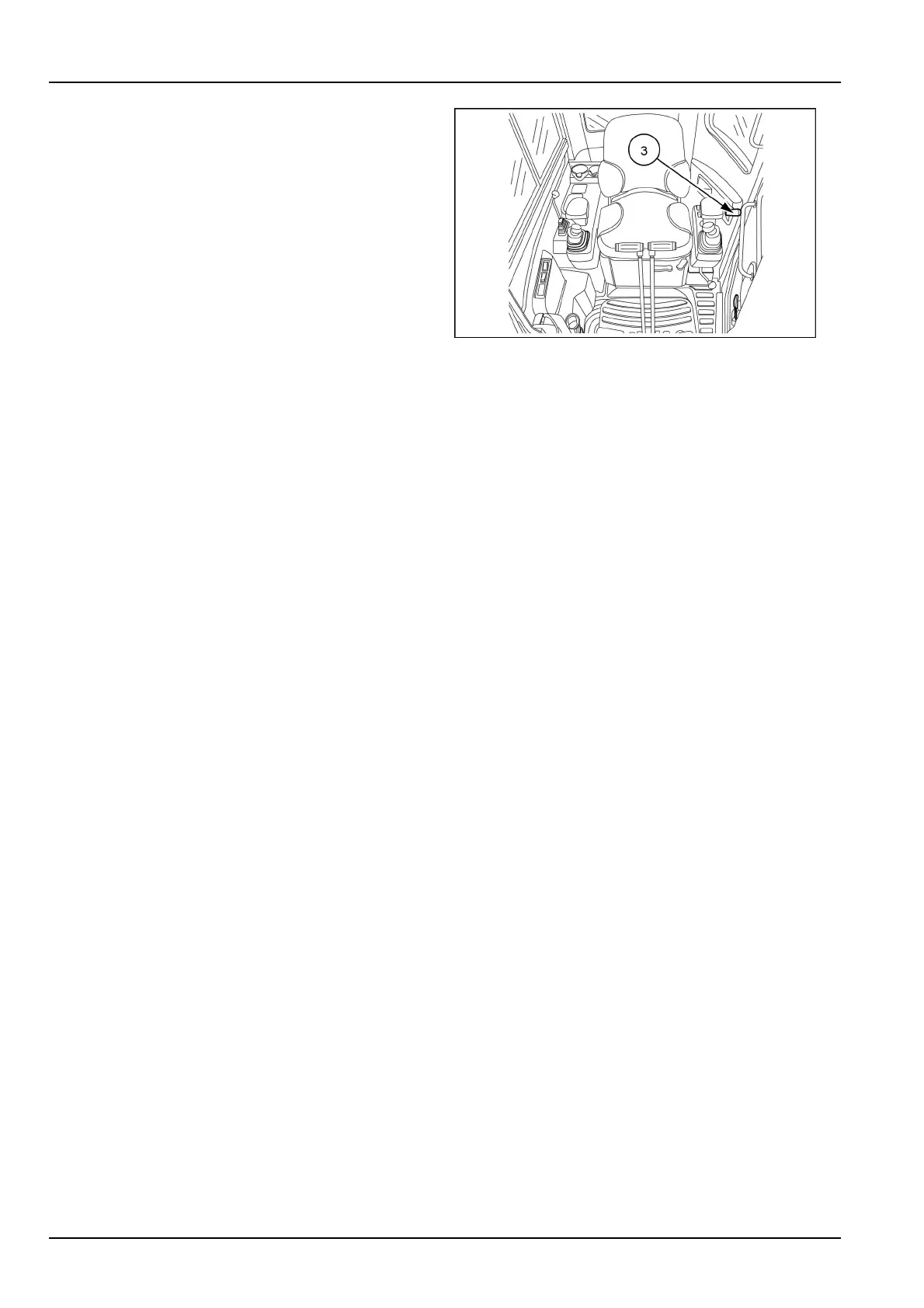

Thedoorcanbelatchedincompletelyopenposition.T o

latchorunlatchthedoor,operatethelever(3).

NOTICE:donotleavethedoorajar.Fixitinalatched

position.Beforeperformingworkwiththedooropen,lock

itsecurely.

SMIL16MEX0365AA3

3-2
