3-CONTROLSANDINSTRUMENTS

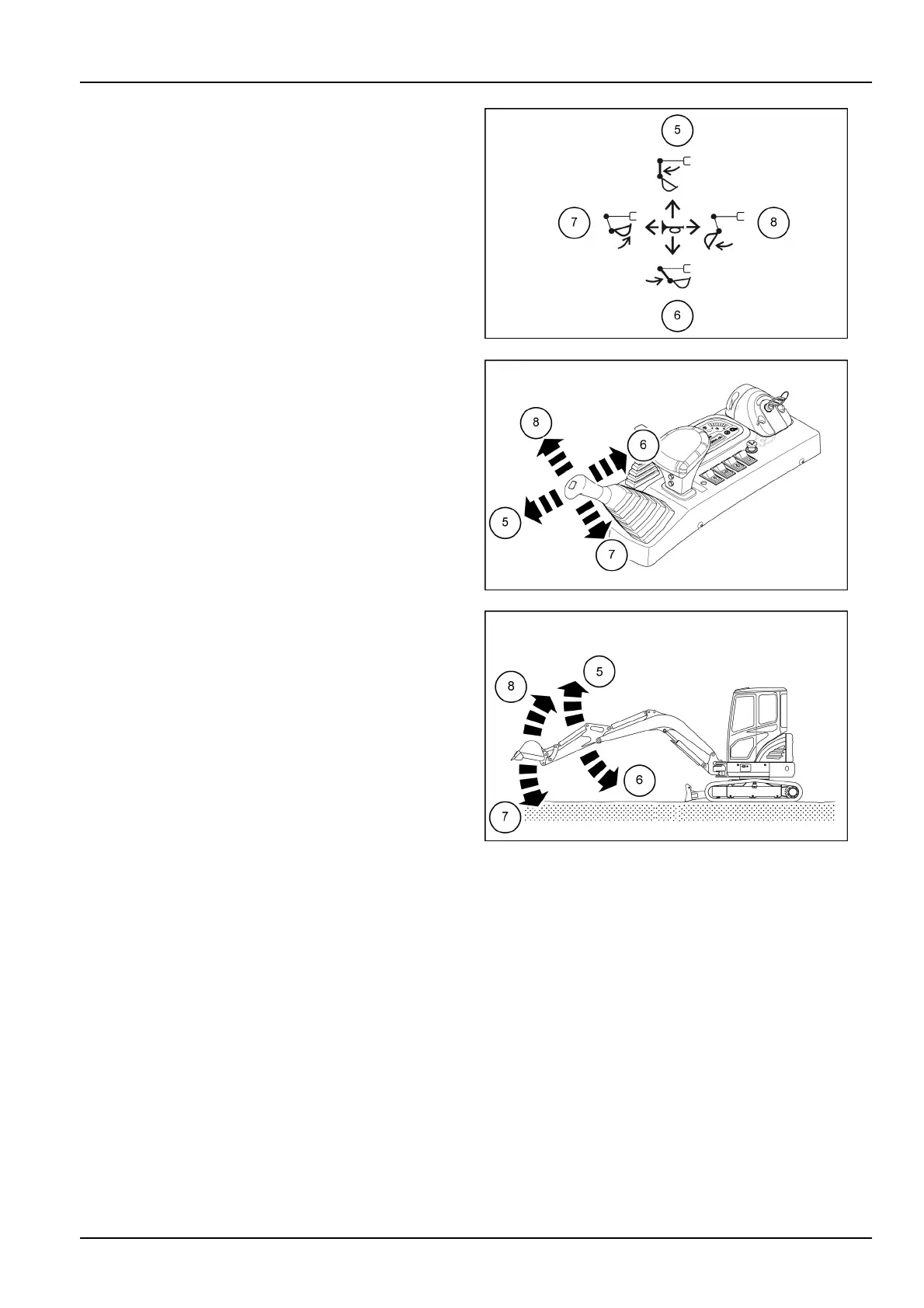

Right-handcontrollever:

5.Thedipperarmextends.

6.Thedipperarmretracts.

7.Thebucketretracts(lling).

8.Thebucketextends(dumping).

NOTE:themovementspeedoftheboomorofthebucket

dependsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL16MEX3079AB10

SMIL16MEX1463AB11

SMIL16MEX3080AB12

3-9
