CASE CONSTRUCTION CX37C - Boom swing pedal; Auxiliary pedal (if equipped)

3-CONTROLSANDINSTRUMENTS
Boomswingpedal
Thispedalisusedtoswingtheboomtotheright-hand
andleft-handdirection.
Movethelockcover(A)tounlockpositionbyfoot.
Pressthepedaltoright-handside(1)toswingtheboom
totheright-handdirection.
Pressthepedaltoleft-handside(2)toswingtheboomto
theleft-handdirection.
NOTICE:makeparticularattentionwhenswingtheboom
totheleft-handside:theattachmentmaycollidewiththe
cab/canopy.

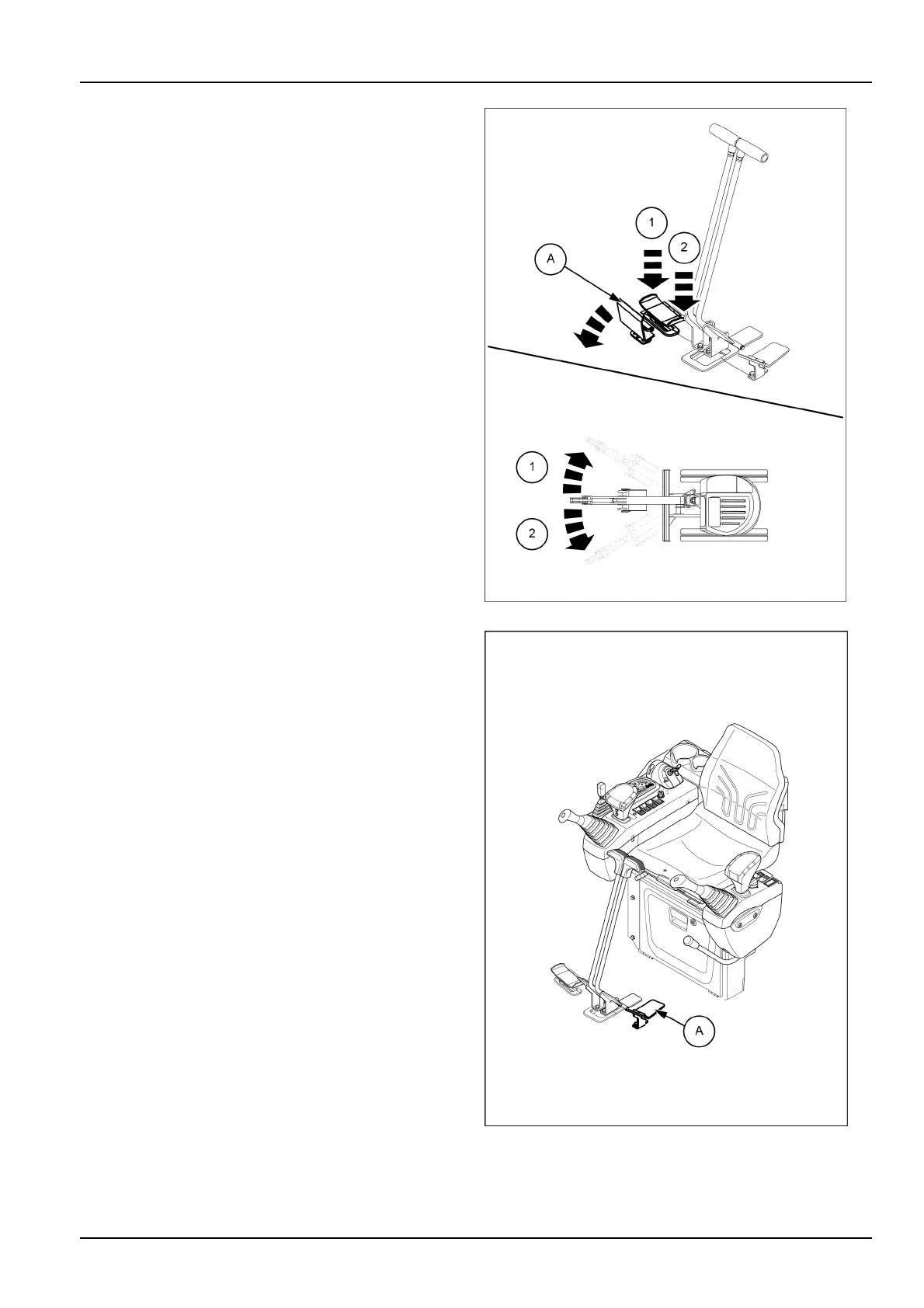

SMIL16MEX0371BB15
Auxiliarypedal(ifequipped)
Theauxiliarypedal(A)allowstocontrolthemainauxiliary
hydrauliccircuit.Thiscircuitisintendedtooperateattach-
mentslikehydraulicbreakersorhydraulicclamshells.
SMIL16MEX1484BB16
3-11
