3-CONTROLSANDINSTRUMENTS
Hydraulicquickcouplingsystemactivation
switch(optional)

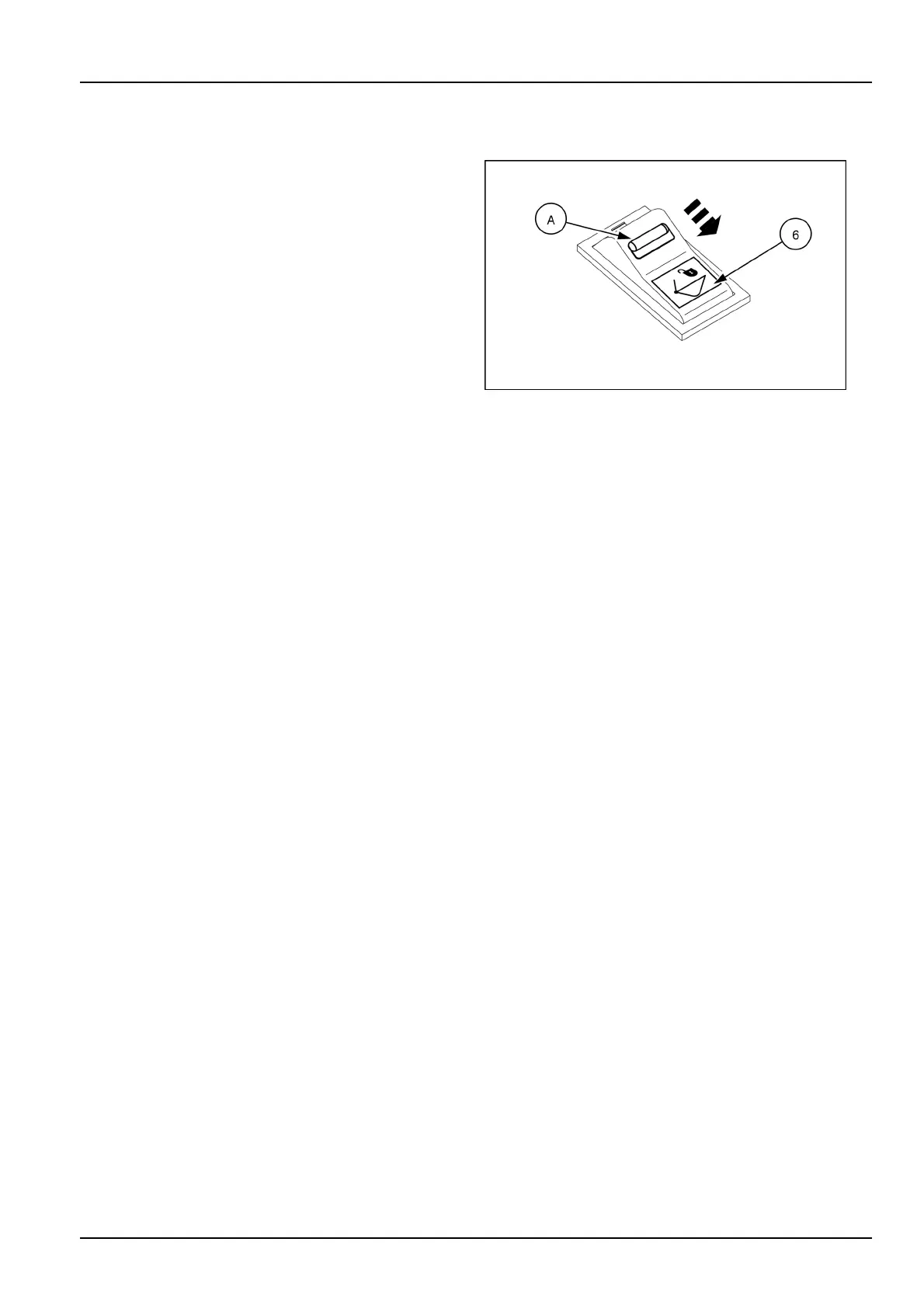

Thehydraulicquickcouplingsystemactivationswitch(6)
isusedtoengageordisengagethehydraulicquickcou-
plingsystem.
Thisactivationswitchhasaslidingmechanism(A)forpre-
ventingerroneousswitchoperation.Slideslidingmecha-
nism(A)inthedirectionofthearrowtolockorunlockthe
device.
Thebuzzersoundswhenthehydraulicquickcouplingsys-
temactivationswitchispressedtodisengagethemoving
hook.Thebuzzerstopswhentheswitchisreleasedto
engagethemovinghook.
Toconnectordisconnectanattachment,proceedas
follows:
1.Placetheattachmentinfullcurledpositionfordiscon-
necting.
2.Slidetheswitchmechanism,thenpressandholdthe
hydraulicquickcouplingactivationswitch(6)inre-
leaseposition.
NOTE:theright-handcontrollevertiltedtoleft-handdi-
rection(bucket-in)activatesthepinsofthequickcou-
pler.
3.Tilttheright-handcontrollevertotheleft-handdirec-
tionfordisconnectingtheattachment.
4.Releasetheswitch.
SMIL16MEX3181AA2
3-15
