3-CONTROLSANDINSTRUMENTS

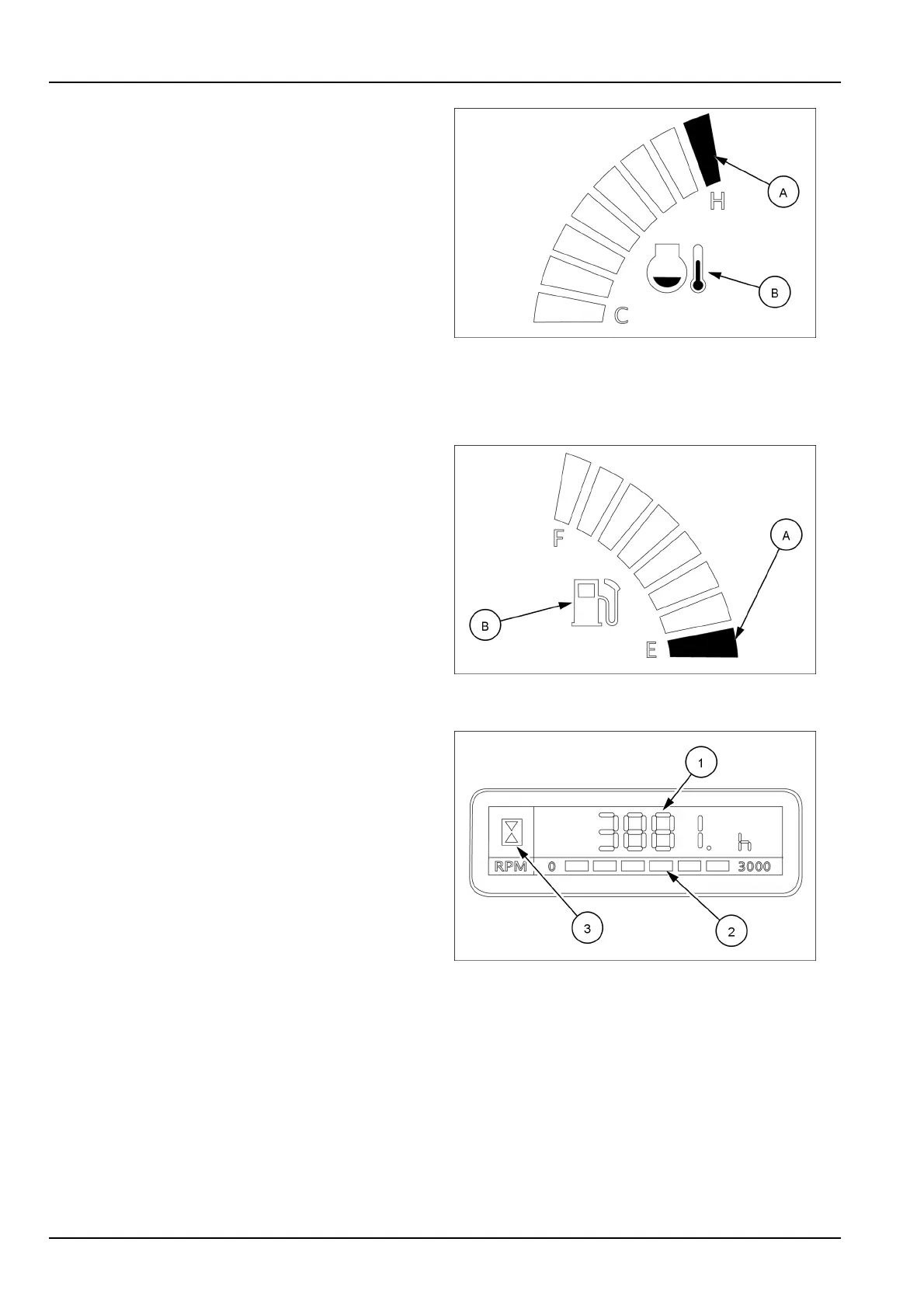

1.Enginecoolanttemperaturegauge
Theenginecoolanttemperaturegaugeindicatesthetem-
peratureofthecoolant.
Theredrange(A)lightsonwhenthetemperatureisabove
115°C(239°F)
Thewarninglight(B)appearsandabuzzersoundswhen
thetemperatureisabove115°C(239°F).
Whentheredrange(A)andthewarninglight(B)areON,
donotstopabruptlytheengine,butruntheengineat
mediumspeedtoallowittocoolgradually,thenstopthe
engine.
NOTICE:iftheengineisstoppedwithoutcooleddown
running,thetemperatureofenginepartswillrisesud-
denly,andthiscancausesevereenginetrouble.
SMIL16MEX0379AA2
2.Fuelgauge
Thefuelgaugeindicatestheamountoffuelinthefuel
tank.
Theredrange(A)andthewarninglight(B)turnONand
abuzzersoundswhentheleveloffuelisbelow5.5L
(1.5USgal).
Fillthefuelwhentheredrange(A)showsandthewarning
light(B)isON.
NOTICE:ifthefuelgaugeilluminatestheredrangeorthe
warninglightisONeventhoughthemachineisonthe
normalcondition,checktheelectricdeviceasthatcanbe
causedbythepoorconnectionofelectricityorsensor.
SMIL16MEX0380AA3
3.Maindisplay
Theservicemeter(1)showsthetotaloperationhoursof
themachine.
NOTE:alwaysensuretheoperatingconditionoftheser-
vicemeterduringthemachineoperation.
TheengineRPM(2)displaystheenginespeed.
Theenginerunstatus(3)displaystheenginerunstatus.
