3-CONTROLSANDINSTRUMENTS

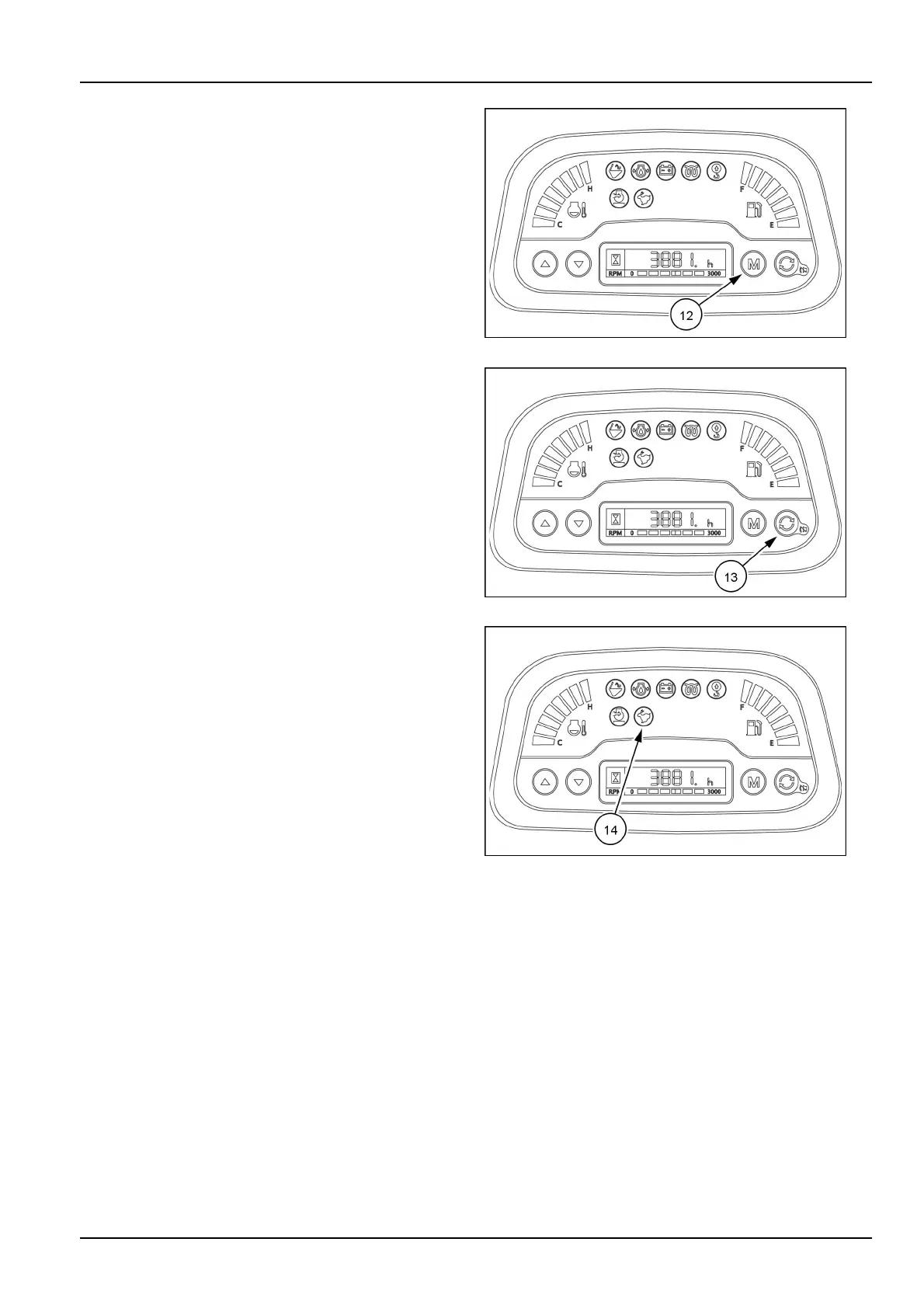

12.Menubutton

Pressthebutton(12)toshowthenextdisplayonthemain

display.

SMIL16MEX1501AA13

13.Enterandbuzzerstopbutton

Pressthebutton(13)toselectthemenu.

Pressthebutton(13)tostopthebuzzerwhenthebuzzer

sounds.

SMIL16MEX1501AA14

14.Highspeedtravellight

Thehighspeedtravellight(14)isONwhenthehighspeed

modeisselectedbymeansofthetravelmodeselector

switchlocatedontheright-handtravellever.

SMIL16MEX1501AA15

3-27
