3-CONTROLSANDINSTRUMENTS

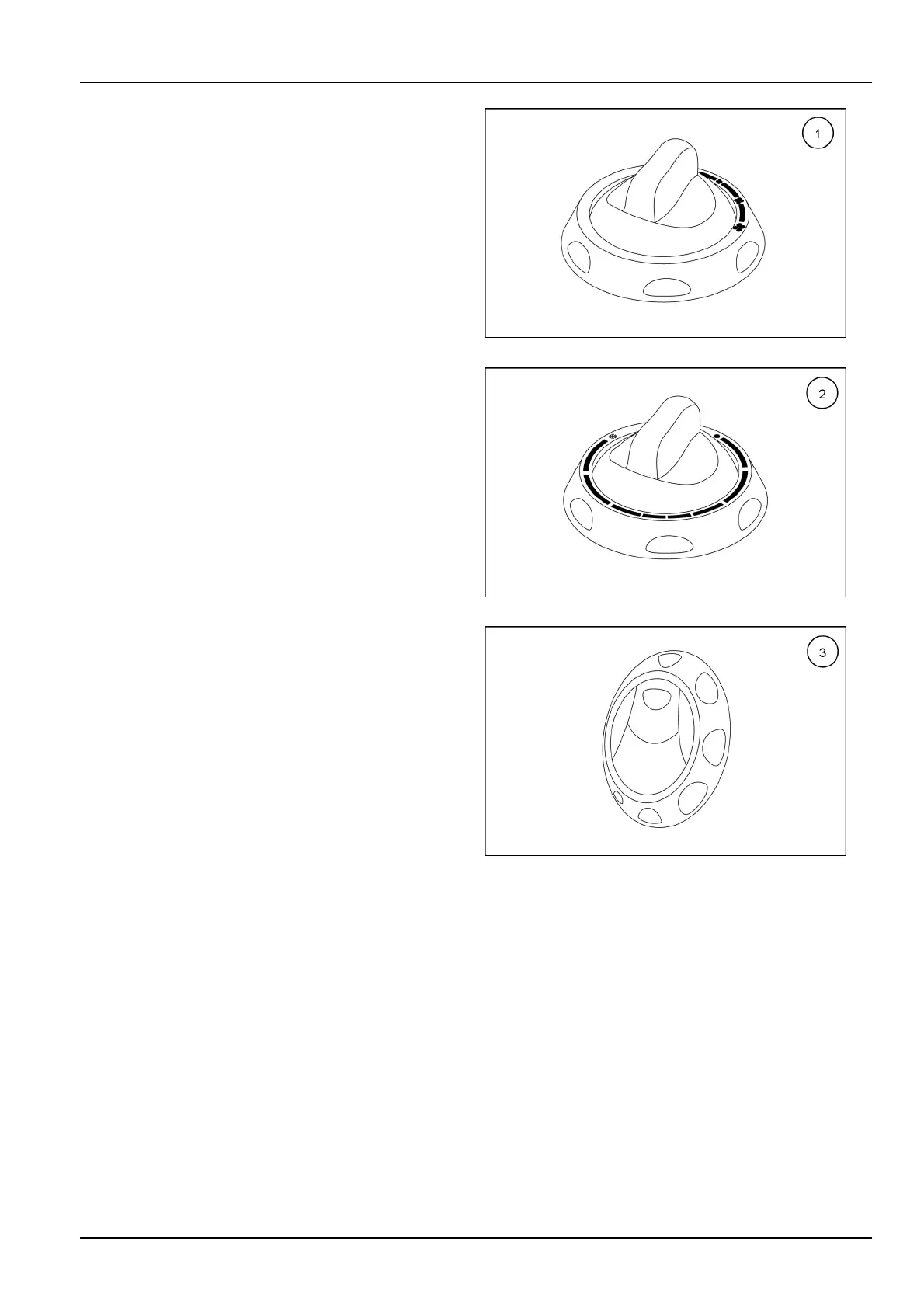

Fanswitch
Thefanswitch(1)controlsthefanvelocitywithfour
steps:
•
OFF
•
Low
•
Medium
•
High
SMIL16MEX2337AA2
Temperaturecontrolswitch
Thetemperaturecontrolswitch(2)controlsthetempera-
tureoftheairblownfromtheoutletcontrollouver.
Todecreasetheairtemperature,turnclockwisethetem-
peraturecontrolswitch.
Toincreasetheairtemperature,turncounterclockwisethe
temperaturecontrolswitch.
SMIL16MEX2338AA3
Outletcontrollouver
Theoutletcontrollouver(3)canbeclosedwhentheair
conditioningsystemisOFFinordertoavoidthecontam-
inationoftheairductbyinsectsorpowder.
WhentheairconditioningsystemisON,theoutletcontrol
louvercanbeopeninordertocontroltheairowdirection.
SMIL16MEX2339AA4
